M549 SUPER-TX SYSTEM BOARD - M Technology

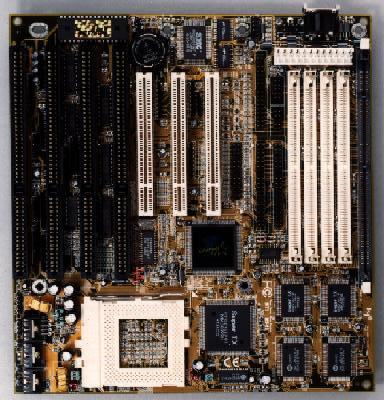

M549 SUPER-TX SYSTEM BOARD -------------------------------------------------------------------------------- (click for larger image) FEATURE HIGHLIGHTS Supports Pipelined Burst Cache for Maximum System Performance Supports Fast Page Memory Supports EDO Memory Supports S-Dram Supports Pentium 75 to MMX233MHz Processors Supports Cyrix 6x86 150+/166+/200+/233+ CPU Supports IBM 6x86 120+/133+/150+/166+/200+ CPU Supports AMD K5 PR75/90/100/120/133/166 CPU Supports Intel MMX , Cyrix MX and AMD K6 CPU. Based on Super TX (VIA VPX) Chipset. ATA-33 or DMA/33 support. The M Technology M549 Super-TX mainboard provides the latest enhancements in system board technology. Based on the Super-TX PCI chipset, the board provides high PCI-to-memory bandwith for today's demanding applications. The M549 supports 512K pipelined bu oltage selector for AMD K6 - 166 to 233 MHz CPU. Specifications: Processor: Single ZIF socket 7 for Pentium 75 to 233MHz processors, Cyrix/IBM 6x86 120+ to 233+ processors, AMD K5 PR75 to PR166 processors. All MMX CPUs including Intel MMX, Cyrix/IBM M2 and AMD K6 CPU. Chip Set: Super-TX (VIA VPX)Chipset. Expansion Slot: Three 32-bit PCI slots. Four 16-bit ISA slots. Cache: Supports 512K synchronous pipelined burst SRAM Onboard. System Memory: Supports 4 x 72 pin SIMM Sockets and 1 x 168 pin DIMM SDRAM (or DRAM) sockets. Supports from 4 MB to 256 MB. Supports FP (fast page), EDO (Extended Data Out) Mode DRAM and SDRAM. On Board IDE 2 x IDE Connectors for up to 4 IDE Drives. PIO Mode 4 Transfers. PCI Bus Master Mode IDE Interface. Supports Ultra IDE Mode On Board I/O 2 Serial Ports (16550 Fast UART compatible). 1 Parallel port (with ECP and EPP supported). 1 Floppy Disk Connector (Supports 2 FD Drives). 1 PS/2 MouseExternal Cable Connector. 1 IrDA Connector. On Board USB Universal Serial Bus Controller: Host/HUB Controller. Two USB Port Connectors. BIOS: Flash ROM BIOS with Green, Plug and Play Features. Dimensions Baby AT Form Factor Size 22 cm x 25 cm (8.7" x 9.8") 4 layer PCB. Documentation: Complete User Installation Manual. Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The M549 is extensively tested for compatibility under various operating systems, including: OS/2TM Warp. SCO® UNIX ODT. MS-DOSTM v 5.0, 6.2. NOVELL. WindowsTM v 3.1, 95 & NTTM. PC-DOS. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
