Stallion AT-M628 SYSTEM BOARD - M Technology

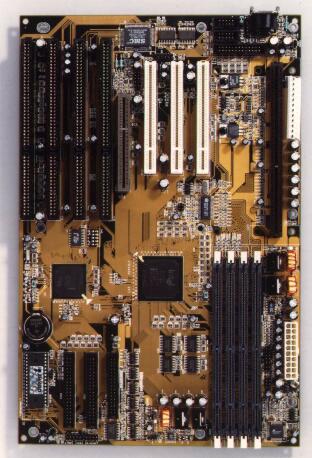

Stallion AT-M628 SYSTEM BOARD Supports P-II-333 -------------------------------------------------------------------------------- (Click for larger image) FEATURE HIGHLIGHTS Based on the Intel 82440LX PCI Chipset Supports Fast Page Memory Supports EDO Memory Supports Intel Pentium II - 233MHz to 333MHz Slot 1 Processors The M Technology M628 provides the latest enhancements in system board technology. Based on the Advanced Intel 82440LX PCIset, the board provides high PCI-to-memory bandwith for today's demanding applications. The processor support ranges from the fastest Specifications: Processor: Intel Pentium II Processor Card (with internal 256 / 512 KB cache) Chipset: Intel 8244LX PCI Chipset SMC I/O Chipset FDC37M672 Expansion Slots: One 32-Bit AGP Slot (Shareable with ISA Slots) Three 32-Bit Bus Mastering PCI Slots Four 16-Bit ISA Slots System Memory: Four 168-pin DIMM Slots (8/16/32/64/128 MB Module) Supports Maximum 512MB Wirh SDRAM oe 1GB with EDO RAM On Board IDE: 2 X IDE Connectors For Up To 4 IDE Drives - PIO Mode 4 Transfers - PCI Bus Master Mode IDE Interface - Supports Ultra IDE Mode I/O On Board: One FDD Port (Supports 360/720KB, 1.2/1.44/2.88 MB FDD) Two RS-232 Serial Ports (16550 UART Compatible) One Parallel Printer Port (SPP/EPP/ECP Mode) IrDA Port with Optional Cable for Transceiver/Receiver PS/2 Mouse Port On Board USB: Universal Serial Bus Controller - Host / HUB Controller - Two USB Port Connectors BIOS: Award or AMI Pentium PCI BIOS With Green, Plug & Play and DMI Functions - Supports Multiple Boot From E-IDE/SCSI/CD-ROM/FDD/LS-120 - 2MB Flash ROM Board Size: 4-Layer of PCB, 22cm X 33cm Baby AT Form Factor Other Features: PC97 Compliance Ultra DMA 33 ATA E-IDE Interface BIOS For Monitoring System Environment, Temperature and Voltage Optional LDCM )LANDesk Client Manager) Utility For Networking Supports AT, ATX Power Connector Documentation: Complete User Installation Manual Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The M628 is extensively tested for compatibility under various operating systems, including: OS/2TM Warp SCO® UNIX ODT MS-DOSTM v 5.0, 6.2 NOVELL WindowsTM v 3.1, 95 & NTTM PC-DOS CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
