AT - PPro SYSTEM BOARD - M Technology

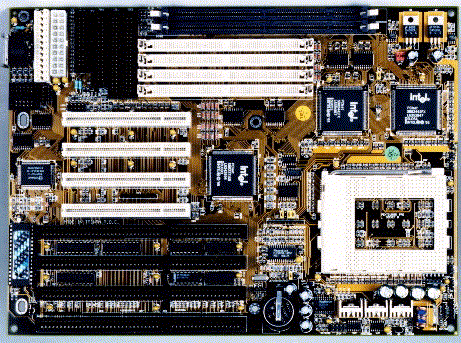

M-TECHNOLOGY AT - PPro SYSTEM BOARD M Technology's Newsgroup Last Updated: March 30th, 1997. -------------------------------------------------------------------------------- (click for larger image) FEATURE HIGHLIGHTS Support Fast Page Memory Supports EDO Memory Supports Intel Pentium PRO 150 to 200MHz Processors Based on Intel 82440FX Chipset The M Technology R622 provides the latest enhancements in system board technology. Based on the Intel 440FX PCI chipset, the board provides high PCI-to-memory bandwith for today's demanding applications. The R622 supports 256/512K on-chip Level 2 cache. Processor support ranges from the fastest Intel Pentium PRO 200MHz down to the least expensive 150MHz units. Specifications: Processor: Single ZIF socket 8 for Pentium Pro 150 to 200MHz processors, CPU Clock Select: Frequency synthesizer chip for easy CPU clock selection. Support for 50, 60 and 66MHz CPU bus. CPU Voltage Select: On board VRM. Expansion Bus: Four 32-bit PCI slots. Four 16-bit ISA slots. (One Share PCI/ISA Slot). Memory: Four 32/36-bit 72-pin SIMM & Two 64-bit 168-pin DIMM sockets to accomodate: 1M x 32/36 (4MB). 2M x 32/36 (8MB). 4M x 32/36 (16MB) or 16MB DIMM. 8M x 32/36 (32MB) or 32MB DIMM. Maximum Memory: 1GB Supports FP and EDO memory. (Note: Does not support SDram) Cache: Supports 256/512K on-chip Level 2 cache. Chip Sets: Intel 82440FX Chipset. PCI (Local Bus) IDE: Mode 4 Enhanced IDE with Bus mastering. Two channel 40-pin enhanced IDE connectors (Primary and Secondary IDE). LS-120 Drive supported. Auto detection of add-in IDE board. Multiple sector transfer supported. Floppy Drive Interface: Supports 360K, 1.2, 1.44 or 2.88MB formats. Auto detection of add-in floppy controllers. Serial/Parallel Ports: 2 on-board 16550 compatible serial ports. 1 on-board parallel port with ECP and EPP supported. 1 PS/2 mouse port. 2 Universal Serial Board ports (Host/Hub). 1 IrDA port. BIOS: Award Flash BIOS. PCI auto configuration. "Plug and Play" Ready. Auto detection of memory SIZE. Auto detection of Fast Page & EDO memory. Auto configuration of IDE hard disk types. Supports SCSI boot. Support LS-120 drive. Form Factor: AT footprint (9" x 11"). Four layer board. Documentation: Complete User Installation Manual. Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The R622 is extensively tested for compatibility under various operating systems, including: OS/2TM Warp. SCO® UNIX ODT. MS-DOSTM v 5.0, 6.2. NOVELL. WindowsTM v 3.1, 95 & NTTM. PC-DOS. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
