SY-5EH Super 7 - M Technology

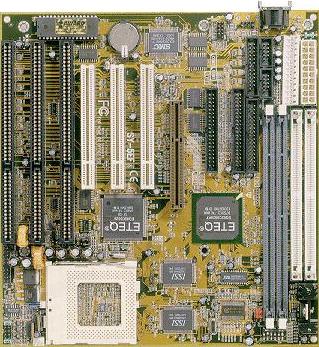

M-Technology SY-5EH Super 7 mainboard Pentium II performance at Socket 7 prices. An overclockers dream! Looking for Pentium II performance but not eager to pay the Slot 1 price premium? The M Technology "Super 7" SY-5EH mainboard is designed to get maximum performance out of Socket 7 technology. Supports Cyrix M II and AMD processors (including the new AMD- -------------------------------------------------------------------------------- (click for larger image) FEATURE HIGHLIGHTS Supports 1MB Pipelined Burst Cache for Maximum System Performance Supports Fast Page Memory Supports EDO Memory Supports S-Drams Supports Pentium 75 to MMX233MHz Processors Supports Cyrix 6x86 150+ to 266+ CPU Supports Cyrix M II 300 CPU Supports IBM 6x86 MX 166 to 300 CPU Supports AMD K5 PR75/90/100/120/133/166 CPU Supports AMD K6-2-266 to K6-2-333 CPU Supports Intel MMX-233 , Cyrix MX-266, AMD K6-266 and IDT C6 CPU. Based on ETEQ (VIA MVP3) Chipset. ATA-33 or DMA/33 support. AGP support. The M Technology SY-5EH AGP mainboard provides the latest enhancements in system board technology. Based on the ETEQ (VIA MVP3) PCI chipset, the board provides high PCI-to-memory bandwith for today's demanding applications. The SY-5EH supports 1MB pipelin M 6x86 150+ to 266+. For the AMD enthusiastic, the SY-5EH is equipped with a 2.2V and 3.2V Voltage selector for AMD K6-2-266 to K6-2-333 with 3D now CPU. It also support the IDT C6 200MHz cpu. Specifications: Processor: Single ZIF socket 7 for Pentium 75 to 233MHz processors, Cyrix/IBM 6x86 120+ to 266+ processors, Cyrix M II 300 processors, AMD K6-166 to K6-266 processors, AMD K6-2-266 to K6-2-333 processors. All MMX CPUs including Intel MMX, Cyrix/IBM M II and AMD K6/K6-2 CPU . Chip Set: ETEQ (VIA MVP3) Chipset. Expansion Slot: Three 32-bit PCI slots. Three 16-bit ISA slots. One AGP slot. Clock chip: Clock chips support 60, 66, 75, 83, 90, 100 and 112MHz**. Note: ** 112MHz is desigined for overclocking, some hardwares may not be compatible. Cache: Supports 1MB synchronous pipelined burst SRAM Onboard. System Memory: Supports 2 x 72 pin SIMM Sockets and 2 x 168 pin DIMM SDRAM (or DRAM) sockets. Supports 8/16/32/64/128/256MB 168 pin modules Supports 4/8/16/32/64MB 72 pin modules Supports FP (fast page), EDO (Extended Data Out) Mode DRAM and SDRAM. On Board IDE 2 x IDE Connectors for up to 4 IDE Drives. PIO Mode 4 Transfers. PCI Bus Master Mode IDE Interface. Supports Ultra DMA/33 or E-IDE Mode. On Board I/O 2 RS-232 Serial Ports (16550 Fast UART compatible). 1 Parallel Printer Port (with ECP and EPP supported). 1 Floppy Disk Connector (Supports mode 3, 1.2/1.44/2.88 FDD). 1 PS/2 Mouse port (Cable Connector included). 1 IrDA Connector. On Board USB Universal Serial Bus Controller: Host/HUB Controller. Two USB Port Connectors. BIOS: Flash ROM BIOS with Green, Plug and Play Features. Other Features: PC97 ACPI spec. compliance Wake up on Lan (optional) Dimensions Baby AT Form Factor Size 22 cm x 23 cm (8.7" x 9") 4 layer PCB. Documentation: Quick Installation Sheet. Complete User Installation Manual (CD). Quality Commitment: The continuously evolving technology of the computer industry demands the highest level of quality, reliability and compatibility. M Technology is committed to providing the industry's state-of-the-art manufacturing, testing, and customer support. The SY-5EH is extensively tested for compatibility under various operating systems, including: OS/2TM Warp. SCO® UNIX ODT. MS-DOSTM v 5.0, 6.2. NOVELL. WindowsTM v 3.1, Win95 & Win98; NTTM. PC-DOS. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : M Technology MTechnology M-Technology Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
