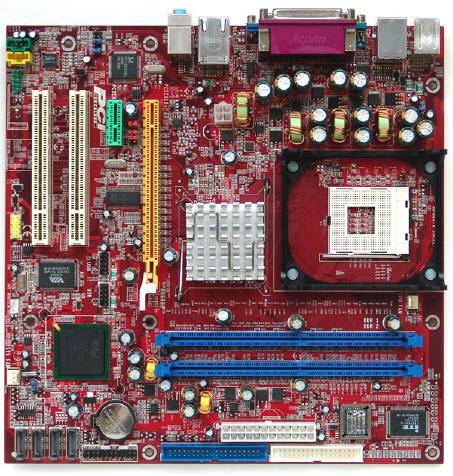

Rhino i915G-M4E - Octek
Chipset Intel i915G (i915G + ICH6) CPU Socket Socket 478 CPU Supported Intel Pentium 4/ Prescott (533/800 FSB) Memory 2 x 184-pin DDR, (Dual Channel DDR400). Socket Support up to 1.0G On Board Display Intergrated 128 bit Graphics Engines, 24-bit 350MHz RAMDAC, Max 64MB Frame Buffer Shared with System Memory via Dynamoc Video Memory Technology Slot 1 x PCI Express 16 Slot, 1 x PCI Express 1 slot, 2 PCI slots Internal Connectors 2 x connector for 4 additional external USB, 1x IrDA, 2 x IDE, 4 x Serial ATA, 1x Floppy, 3 x ATX power,3 x fan, 1 x WOL,1 x WOR, 1 x opened chassis alarm, 2 x internal audio connectors (CD-in, TAD), 1 x IEEE1394(optional) External Connectors 2 x USB (Support 1 XUSB2.0) , 2 x DB-9, 1 x DB-25, 1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x game/MIDI, 3 x Audio jacks. PCI IDE Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66/100 Channels On board LAN & IEEE1394 On board 10/100 LAN or Giga LAN version is also available On board 2 x IEEE1394 version is also available Hardware Monitoring Voltage, Temperature, Fan Speed Monitoring, CPU Over Heat Protection. Power Management Support SMM, APM and ACPI, Comply to Energy Star “Green PC” Program. Supports Modem Ring-in Wake Up Audio on board Integrated AC97 Controller with Standard AC97 Codec. 6 Channel Audio Codec Support, PnP, Full-Duplex, Sound Blaster and Direct Sound Ready.Line-in, Line-out, Mic-in and MIDI/Game Port BIOS Award 2Mbit Other Features Suspend to RAM Form Factor Micro ATX form factor CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : Octek Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
