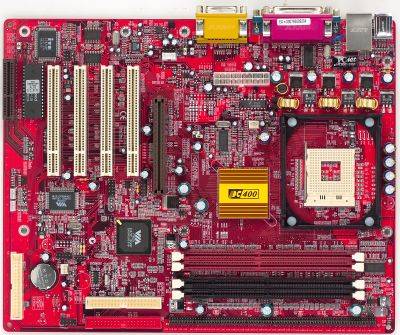

M922LU (V5.0) - PC CHIPS PCCHIPS
Socket 478 and FSB533/DDR266 Motherboard M922LU V5.0 motherboard is based on the P4X333/8235 chipset. It suports Socket 478 for Intel Pentium 4 CPU, up to 533MHz FSB , 2 unbuffered DDR266 DDRAM and 2 unbuffered PC133 SDRAM memory? to deliver the best flexibility, price and performance.??? Specification CPU Socket 478 for Intel Pentium 4 processor FSB 533/400 MHz Chipset P4X266A/8235 Memory 2 x 184-pin DIMM sockets support two 2.5V DDR SDRAMs (DDR266/200) 2 x 168-pin DIMM sockets support two 3.3V SDRAMs (PC133) Maximum: 2GB Expansion Slots 1 x AGP 4X 4 x PCI 1 x CNR LAN VIA VT6103 10/100Mbps Fast Ethernet PHY Audio VIA VT1612A 2-channel audio Codec Compliant with AC97 2.2 specification IDE 2 x UltraDMA 133/100/66 Back Panel I/O Ports 1 x PS/2 keyboard 1 x PS/2 mouse 2 x USB 2.0 Ports 1 x RJ 45 Port 1 x Parallel Port 2 x Serial Port 1 x Game/MIDI port 1 x Audio I/O (Line-in, Line-out and Mic-in) Internal I/O Connectors & Headers 20-pin ATX power supply connector 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120 2 x USB 2.0 header support additional 4 USB2.0 ports 1 x Front panel switch/LED header 1 x CD in/AUX in header CPU / SYS FAN headers 1 x Speaker header 1 x WOM header 1 x WOL header 1 x Front panel audio header 1 x IrDA for SIR header System BIOS AMI 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification Form Factor ATX Form Factor, 305*244mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : PCCHIPS Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
