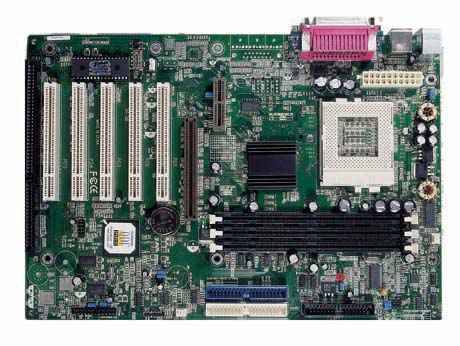

Advance 10F - QDI
ITEM DETAIL Chipset VIA Apollo Pro 133A North Bridge: VIA VT82C694X South Bridge: VIA VT82C686B(PCB2.0); VIA VT82C686A(PCB1.0) Slots 5 PCI slots 1 ISA slots 1 AGP slot 1 AMR CPU Support Socket 370 processors Support Intel Pentium III FC-PGA processors Support Intel Celeron processors Support VIA Cyrix-III processors On-board 1.5V,2.5V. System Memory Three 168-pin 3.3V PC133 DIMM sockets Support up to 1.5GB SDRAM Support 66/100/133MHz Synchronous DRAM and VCM SDRAM Power Management ACPI V1.0 and APM compliant Support S0,S1,S3,S5 ACPI power status Suspend to RAM and Suspend to Disk Support USB 4 USB ports USB 1.1 specification compliant Bus Speed 66/100/133MHz FSB Overclock up to 155MHz BIOS Licensed advanced AWARD BIOS 2Mbit Flash ROM Support Plug and Play Support ACPI and OS Directed Power Management Storage system Two PCI Master IDE ports support up to 4 IDE devices Support ATA 66/100(PCB2.0) Support ATA 66(PCB1.0)) One floppy port support up to two 3.5" or 5.25" floppy drives(360K/720K/1.2M/1.44M/2.88M) Support LS-120 floppy disk drive and ZIP drive I/O Feature All I/O ports can be enabled/disabled by BIOS setup 1 Speaker+1 Line in+1 Mic 1 PS/2 keyboard prot 1 PS/2 mouse port 2 high speed Serial Ports(16550 fast UART compatible) 1Enhanced parallel Port (SPP, EPP, ECP) IrDA port supports up to 115.2KB/sec transfer rate Graphics AGP 4X Support Universal AGP Slot Transfer Rate up to 1GB/s System Health Monitoring CPU temperature, system temerature, CPU fan speed and chassis fan speed, 5 system voltages Onboard Audio 16-bit Stereo Codec(Optional) Advanced Feature Supports wakeup on Lan/Modem Trend ChipAway Virus on Guard PC-cillin with killing function QDI Innovative Technology BootEasy, RecoveryEasy, SpeedEasy, LogoEasy, BIOS-ProtectEasy, ManageEasy Board Size 305 x 210 mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
