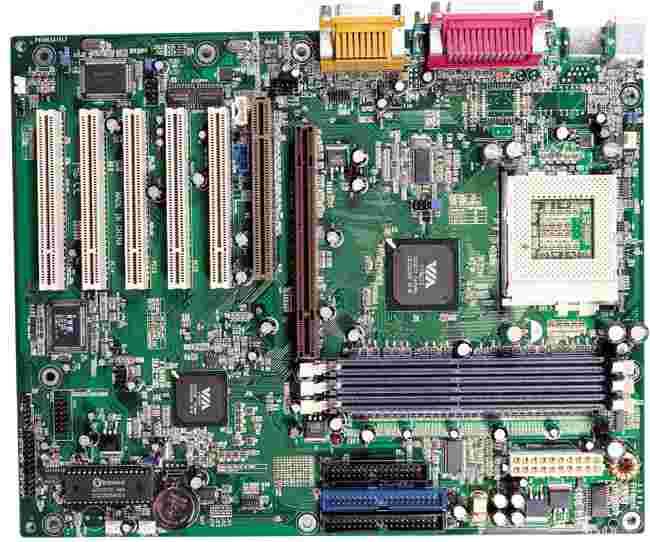

Advance 12 - QDI
ITEM DETAIL Chipset VIA Apollo Pro 266 North Bridge: VIA VT8633 South Bridge: VIA VT8233 Adopts ITE IT8712F I/O chip Slots 5 PCI slots 1 ACR slots 1 AGP PRO slot Provide ACR slot to support AMR modem card, audio riser card, 10/100Mb Ethernet ACR card and 1 Mb HomePNA card CPU Support Socket 370 processors Support Intel Pentium® III FC-PGA processors at 500E/533EB/550E/600E/ 600EB/650/667/700/733/750/800/800EB/850/866/933/1GHz and future Support Intel Celeron processors 300A/333/366/400/433/466/500/500A/533/ 533A/566/600/667/700/733/766/800MHz and future Support VIA Cyrix-III processors at 500/533/550/600/667/700/750MHZ System Memory Three 184-pin 2.5V DDR DIMM sockets Support up to 3GB DDR SDRAM maximum Support 200/266MHz Synchronous DRAM PC1600/PC2100 Compliant Power Management Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management) Supports ACPI power status: S0( Full-on ), S1( power on Suspend ), S4(STD)(Windows Me, Windows 2000 ), S5(Soft-off) USB 6 USB ports support usb1.1(2 USB on real I/O panel, 4 USB headers on board) USB 1.1 specification compliant Bus Speed 66/100/133MHz FSB Overclock up to 155MHz BIOS Licensed advanced AWARD BIOS 2Mbit Flash ROM Support Plug and Play Support ACPI and OS Directed Power Management Storage system Two PCI Master IDE ports support up to 4 IDE devices Support ATA 33/66/100 One floppy port support up to two 3.5" or 5.25" floppy drives(360K/720K/1.2M/1.44M/2.88M) Support LS-120 floppy disk drive and ZIP drive I/O Feature All I/O ports can be enabled/disabled by BIOS setup 6 USB ports support USB 1.1 1 Speaker-out/1 Line-in/1 Mic-in jacks 1 Game port/MIDI port 1 PS/2 keyboard prot 1 PS/2 mouse port 2 high speed Serial Ports(16550 fast UART compatible) 1Enhanced parallel Port (SPP, EPP, ECP) IrDA port supports up to 115.2KB/sec transfer rate Graphics Provides AGP 4X interface AGP PRO slot, support 3.3v/1.5v AGP card and AGP Pro card Transfer Rate up to 1GB/s System Health Monitoring CPU temperature, system temperature, CPU fan speed and chassis fan speed, Backup fan speed, 8system voltages Onboard Audio/ Onboard LAN Advance 12-C: Onboard Creative CT5880 hardware PCI audio processor 4-channel Codec Support 4 speakers 3D surround stereo audio Advance 12-A: Onboard AC'97 Audio Codec 16-bit stereo codec Advance 12-L: Provides One 10/100M LAN interface 10/100 Mbit/sec Ethernet support Advanced Feature PCI 2.2 compliant Provides Trend ChipAwayVirus On Guard Supports PC99 color- coding connector Specification Supports wake-up on LAN Supports wake-up on internal/external modem Supports system monitoring (monitors system temperature, CPU temperature, voltages and fan speed) Keyboard password power on function AC Power resume function QDI Innovations BootEasy, RecoveryEasy, SpeedEasy, LogoEasy, BIOS-ProtectEasy, ManageEasy Board Size ATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
