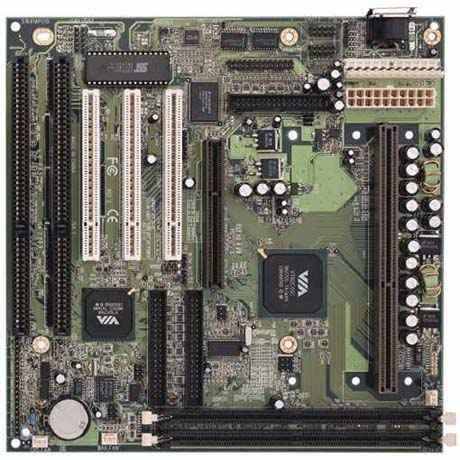

Advance 4 - QDI
CPU Intel Pentium?II Processor 233/266/300/333MHz (66MHz) Intel Pentium?II Processor 300/350/400/450MHz (100MHz) Intel Celeron™ processor up to 500MHz Intel Pentium?III Processor Bus Speed 66/100MHz Chipset VIA Apollo Pro VT82C691 AGPset: (VT82C691/NB, VT82C596/SB) System Memory Two 168 pin 3.3V DIMM sockets, support up to 256MB SDRAM or up to 512MB EDO RAM BIOS Licensed advanced Award BIOS, supports 2MB Flash ROM BIOS, PnP ready. Supports IDE CD-ROM or SCSI boot up. Green Function Supports ACPI specification and OS Direct Power Management. Supports three green mode: Doze, Standby and Suspend On-Board Plug & Play I/O Use NS87351 Super I/O chip 1 Floppy port support up to two 3.5 inch or 5.25 inch floppy driver with (360K/720K/1.2M/1.44M/2.88M) format Support LS-120 floppy disk driver. All I/O ports can be enabled/disabled by the BIOS setup Two high speed 16550 Fast Compatible UART (COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs and supports MIDI mode 1 Enhanced parallel port at the I/O address 378H/278H/38CH with additional bi-direction I/O capability and multi-mode (SPP/ECP/EPP) (IEEE 1284 compliant) Provides protection circuit to prevent damages to the printer port when a connected printer is powered up on operates at a high voltage On board IDE Independent timing for up to 4 drivers. PIO mode 4 transfers up to 14MB/s Supports "Ultra 33" Synchronous DMA mode transfers up to 33MB/s Integrated 8x32bit buffer for IDE PCI burst transfers Bus Type 3 PCI Local bus slots 2 ISA bus slot 1 AGP slot Advanced Feature On-board W83782D supports system monitoring (monitors CPU and system temperature, system voltages, chassis instrusion and fan speed) Supports LDCM software (optional) Supports ManageEasy On-board PS/2 mouse and optional PS/2 keyboard hearders 2 USB ports On-board switching voltage regulator with VID (supporting from 1.3 to 3.5V) Provides Anti-virus function Provides infrared interface Supports Windows 95/98's software power shutdown when using ATX power supply Supports external modem ring power-on when using ATX power supply Supports auto fan off when the system enters suspend mode Supports wake-up on LAN and wake-up on internal/external modem function when using ATX power supply Certificates NSTL Year 2000 Compliant Board Size 220x220mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
