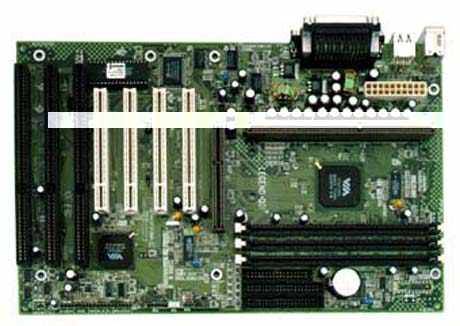

Advance 5 - QDI
CPU Support all of Intel Pentium® II processors Support Intel Pentium® III processors Support Intel Celeron CPU up to 500 MHz CPU clock = Bus speed x2 to x8 Bus Speed 66/100MHz 133MHz (manufacturing option) Chipset VIA Apollo Pro Plus chipset: VIA VT82C693 North Bridge supports 100MHz SDRAM VIA VT82C596A South Bridge supports: 1. Independent timing of up to 4 devices 2. PIO mode 4 transfers up to 14MB/sec 3. Supports "Ultra 33" synchronous DMA mode transfers up to 33MB/sec 4. Two USB ports System Memory Three 168-pin 3.3V 100MHz sockets Supports up to 384MB SDRAM memory (Registered SDRAM up to 768MB) 66/100MHz SDRAM (66MHz EDO DRAM) BIOS Licedsed advanced AWARD BIOS 2MB Flash ROM Plug and Play ready Full support for ACPI specification and OS Directed Power Management Green Function Supports ACPI specification and OS Directed Power Management Supports slow down I/O Feature Winbond W83977 EF I/O chip All I/O ports can be enabled/disabled by BIOS setup 1 Floppy Port supports up to two 3.5" or 5.25" floppy drivers (360K/720K/1.2M/1.44M/2.88M) Supports LS-20 floppy disk drive and ZIP drive 2 high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) 1Enhanced parallel Port (SPP, EPP, ECP) IrDA port supports up to 115.2KB/sec transfer rate On board IDE 2 PCI Master IDE Ports support up to 4 IDE devices including IDE hard disks and CD-ROMs "Ultra DMA/33" synchronous DMA Mode transfers up to 33MB/sec Bus Type 4 PCI local bus slots 3 ISA slots 1 AGP slot Advanced Feature On-board LM80 supports system monitoring (monitoring system voltage and temerature, fan's speed and chassis instrusion) (option) Maxim 1617 monitors CPU temperature (option) Supports LDCM (option) Support SpeedEasy™, LogoEasy and ManageEasy Supports both internal and external modem ring power-on Supports wakeup on Lan PS/2 keyboard power on (by password) Trend ChipAway Virus on Guard On-board switching voltage regulator with VID (supports 1.3V to 3.5V) Provides infrared interface Supports auto fan off when system enters suspend mode Supports AC power failure resume function with ATX power supply Certificates NSTL Year 2000 Compliant Board Size 305 x 193 mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
