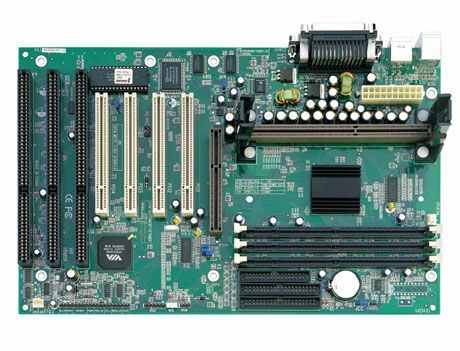

Advance5-133 - QDI
CPU Support PII, PIII and Celeron CPU. Multiplier Support x2 up to x8 Bus Speed 66/100MHz 133/144/155MHz Clock chip IC_Work W196G(28Pin) with IIC Clock Driver IC_Work W40S11-23G(28Pin) with IIC SDRAM Buffer Chipset VIA Apollo Pro 133 Chipset VT82C693A North Bridge can support 66/100/133MHz CPU Front Side Bus VIA VT82C596B South Bridge supporting: 1.Independent timing of up to 4 drives 2.PIO mode 4 transfers up to 14MB/sec 3.Support ATA 33/66 synchronous DMA mode transfers up to 66MB/Sec 4. Integrated 16x32bit buffer for IDE PCI Burst Transfers 5.Two USB ports System Memory Three 168pin 3.3V unbuffered 66/100/133MHz DIMM socket Support 8MB to 768MB SDRAM memory BIOS Licensed advanced AWARD BIOS, 2MBit flash Rom, Plug and Play ready Full supports for ACPI specification and OS directed power management Support SpeedEasy, LogoEasy, ManageEasy, BIOS-ProtectEasy and RecoveryEasy. I/O Feature Winbond W83977 EF I/O chip All I/O ports can be Enabled/Disabled by BIOS setup One floppy port supports up to two 3.5’’ or 5.25’’ floppy drivers Supports LS-120 floppy disk driver and ZIP drive Two high speed 16550 fast compatible UARTs(COM1/COM2/COM3/COM4 selectable) One enabled parallel port(SPP/EPP/ECP) IrDA port support up to 115.2KB/Sec transfer rate Support APM&ACPI, P&P 1.0A compatible Bus Type 4 PCI local bus slots 3 ISA slots 1 AGP slot Advanced Feature Support ManageEasy (Manufacturing option) On board LM80 supports system monitoring(monitor system voltage & temperature, 2 FAN speed and Chassis instrusion) Maxim 1617 monitor cpu temperature (optional) Supports both internal and external modem ring power-on, support WOL PS2 keyboard power on (by password) Trend ChipAway Virus on guard On board switching voltage regulator with VID function meet VRM8.4 Spec(support 1.3V to 3.5V) Provides infrared interface Supports auto fan off when system enters suspend mode Certificates NSTL Year 2000 Compliant Board Size ATX 305mmx193mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
