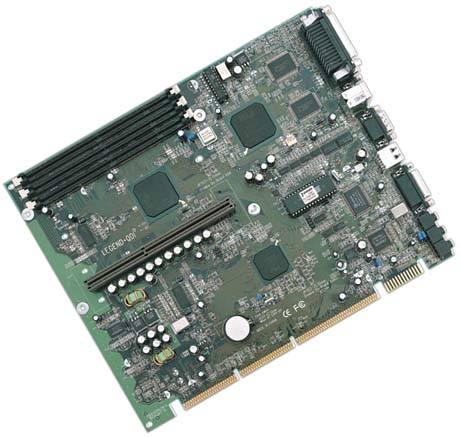

BrillianX III - QDI
Chipset Intel 82443BX AGPset, supports 100MHz SDRAM Intel 82371EB (PIIX4E), supports : 1. Independent timing of up to 4 drivers 2. PIO mode 4 transfers up to 14Mbytes/sec 3. Supports "Ultra 33" synchronous DMA mode transfers up to 33Mbytes/sec 4. Integrated 16x32bit buffer for IDE burst transfers Bus Type 2 PCI local bus slot. 2 ISA bus slots on Riser Card CPU Intel Pentium?II Slot1 Processors 233/266/300/333MHz (66MHz) Intel Pentium?II Slot1 Processors 350/400/450MHz (100MHz) Intel Pentium?II Slot1 Celeron?Processors 266/300MHz or higher CPU power supply 1.3V to 3.5V adjustable with VID function System Memory Three 168pin 3.3V unbuffered 100MHz DIMM sockets Supports up to 384MB SDRAM memory. 100MHz/66MHz synchronous DRAM (66MHz EDO DRAM) SDRAM 64 bit data interface with ECC support. 4/16/64/128/256Mbit DRAM device BIOS Award Flash BIOS with PnP ready. SpeedEasy? or jumper emulation On board IDE 2 PCI PIO and Bus Master IDE ports, supports up to PIO mode 4, DMA mode 2, Ultra DMA33 On board AGP Intel i740 AGP graphics controller with 2M/4M video RAM. Integrated 3D, 2D and video accelerators with palette DAC Supports maximum resolution of 1600x1200 at 75Hz (Depending on the memory configuration) On board audio Crystal CS4235 3D audio chip Compatible with Sound Blaster, Sound Blaster Pro and Windows Sound System Stereo enhancement support. Provides on-board line-in, microphone-in, speaker-out/line-out and MIDI/joystick socket Software wave table I/O Feature 2 High speed serial ports (16550 Fast UART Compatible) 1 Enhanced parallel port (SPP/ECP/EPP) 1 Floppy port supports up to 2 floppy drives (360K/720K/1.2M/1.44M/2.88M) Green Function Full support of ACPI and OS Directed Power Management Supports three green modes : Doze, Standby and Suspend Advanced Feature On-board LM80+LM75 system monitoring (monitors system voltage, system temperature & temperature of CPU and FAN speed) Supports keyboard password power-on. Supports LDCM and ManageEasy (Optional) Supports both internal and external modem ring power-on. Supports wakeup on LAN. SecurityEasy (Optional). Two USB ports On-board switching voltage regulator with VID (supports 1.3V to 3.5V). Anti-virus function. Supports IrDA infrared Supports Windows95/98 software power-down. Supports auto fan off when system enters suspend mode Supports power failure resume function. Supports PS/2 mouse and PS/2 keyboard Board Size 284.5mm x 228.6mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
