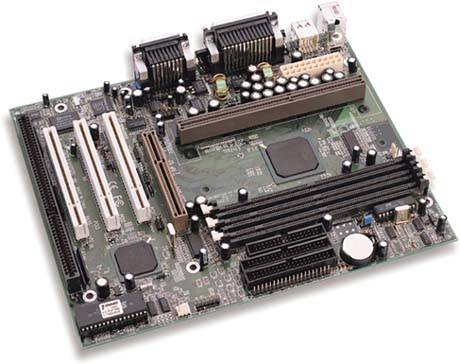

BrillianX V - QDI
Chipset Intel 82443BX AGP Set supports 100MHz SDRAM Intel 82371EB (PIIX4E), Supports : 1. Independent timing of up to 4 drivers 2. PIO mode 4 transfers up to 14Mbytes/sec 3. Supports "Ultra 33" synchronous DMA mode transfers up to 33Mbytes/sec 4. Integrated 16x32bit buffer for IDE burst transfers Bus Type 3 PCI local bus slots, 1 ISA bus slot, 1 AGP slot (speed 66/100MHz) CPU All of Intel Pentium® II Processor Intel Pentium® III Processor Intel Celeron™ Processor up to 500MHz System Memory Three 168pin 3.3V unbuffered 100MHz DIMM socket Supports up to 384MB SDRAM memory or 768MB register memory 100MHz/66MHz synchronous DRAM (66MHz EDO DRAM) SDRAM 64 bit data interface with ECC support 4/16/64/128Mbit DRAM device BIOS AWARD Flash BIOS with Plug and Play ready Build-in NCR 53C810 SCSI BIOS Full support for ACPI specification and OS Directed Power Management Supports IDE CD-ROM or SCSI bootup On board IDE Supports 2 PCI PIO and Bus Master IDE ports for up to 4 IDE devices including IDE hard disks and CD ROMs Supports up to Mode 4 Timing Supports "Ultra DMA/33" synchronous DMA Mode transfers up to 33Mbytes/sec Integrated 16x32bit buffer for IDE PCI Burst Transfers On board audio Creative Vibra 16XV CT2511 sound chip Compatible with Sound Blaster, Sound Blaster Pro and Windows Sound System Integrated CQM Stereo enhancement support Provides on-board line-in, microphone-in, speaker-out/line-out and MIDI/Joystick socket I/O Feature Winbond W83977 EF-AW I/O chip All I/O ports can be enabled/disabled by BIOS setup 1 Floppy port supports up to two 3.5" or 5.25" floppy drivers (360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) with 16-byte send/receive FIFOs and support MIDI mode 1 Enabled parallel port (SPP/EPP/ECP) at I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode (SPP/EPP/ECP) (IEEE1248 compliant) Provides protection circuit to prevent damage to parallel port when a connected printer is powered up or operated at higher voltage Green Function Full support Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports 3 green modes : Doze, Standby and Suspend Advanced Feature On-board WB83782D support system monitoring (monitors system voltage, system temperature & temperature of CPU, chassis intrusion and FAN speed) (optional) Supports keyboard password power-on, Supports LDCM and ManageEasy (optional) Supports both internal and external modem ring power-on, Supports wakeup on LAN On-board PS/2 mouse and PS/2 keyboard socket, 2 USB ports On-board switching voltage regulator with VID (supports 1.3V to 3.5V) Anti-Virus function Supports IrDA infrared Supports Windows 95/98's software power-down Supports auto fan off when system enters suspend mode Supports power failure resume function Certificates NSTL Year 2000 Compliant Board Size 244mm x 200mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
