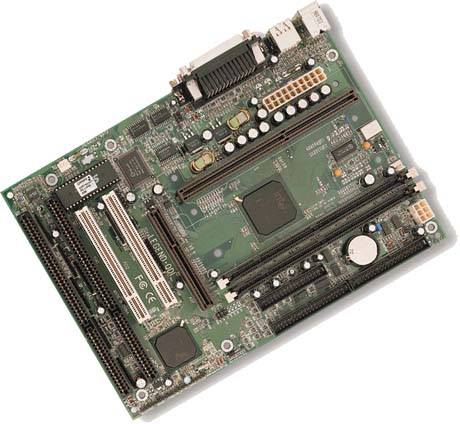

ExcellenX II - QDI
Chipset Intel 82443EX AGPset, supporting 66MHz SDRAM Intel 82371EB(PIIX4E), supporting : Independent timing of up to 4 devices PIO mode 4 transfers up to 14 Mbytes/sec "Ultra 33" Synchronous DMA mode transfers up to 33 Mbytes/sec Integrated 8 x 32 bit buffer for IDE PCI Burst Transfers Two USB ports Bus Type 1 AGP Slot 2 PCI Slots 2 ISA Slots CPU Intel Pentium?II Processors 233/266/300/333MHz Intel Celeron? Processors up to 500MHz System Memory Two 168pin 3.3V unbuffered 66MHz DIMM sockets Maximum memory capacity up to 256MB SDRAM EDO and Synchronous DRAM support BIOS Plug and Play ready (Award) 1M DIP flash BIOS All I/O ports can be enabled/disabled by BIOS setup Anti-Virus function, non volatilized CMOS backup SpeedEasy or jumper emulation setting (optional) Supports LogoEasy On board IDE 2 IDE ports Supports Ultra DMA/33 mode I/O Feature Winbond 83977 TF/EF Super I/O chip 1 floppy disk interface 2 high speed 16550 compatible UARTs with 16-byte send/receive FIFOs 1 printer port (SPP/EPP/ECP) Two USBs (Universal Serial Bus) PS/2 mouse and PS/2 keyboard connectors IrDA infrared port Green Function Full support of ACPI and Operating System Directed Power Management Supports slow down, suspend to hard disk Other Features ATX or SFX power supply support CPU power supply 1.4v to 3.5v adjustable with VID function, meets VRM8.2 spec On board 1.5v and 2.5v regulators Wakeup by PS/2 keyboard, PS/2 mouse, IrDA, Modem or LAN (optional) System monitoring includes 3 fan speeds (controllable) and 7 system voltage, chassis intrusion detector, CPU & system temperature sensed by W83781D (optional) Supports LDCM and ManageEasy (optional) On board 3.5v power supply support for PIIX4EB Board Size 244 x 177mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
