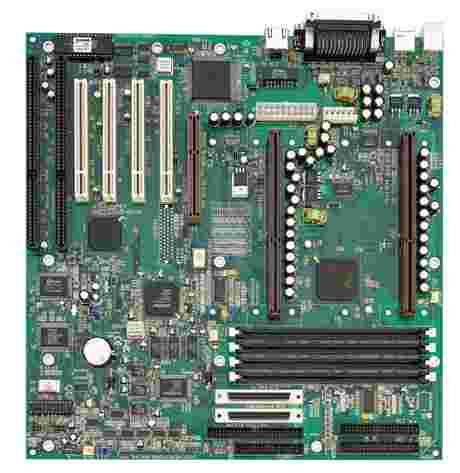

GeniuX 1 - QDI
Chipset Intel 82443GX AGP Set Supports 66/100MHz SDRAM. Intel 82371EB(PIIX4E), Supports: 1.Independent timing of up to 4 drivers 2.PIO mode 4 transfers up to 14Mbytes/sec 3.Support "Ultra 33"synchronous DMA mode transfers up to 33Mbytes/Sec 4.Integrated 16x32bit buffer for IDE burst transfers 5.Two USB ports Bus Speed 66/100M Hz CPU Dual Intel Pentium II and Pentium III processors up to 550MHz Two Slot 1 CPU Clock=Bus speed x2 to x8 On board 1.5V and 2.5V regulators, dual CPU power supply up to 2x17A CPU power supply 1.3V to 3.5V adjustable with VID function System Memory Four 168pin 3.3V unbuffered 100M/66MHZ DIMM sockets Supporting 8MB to 2GB memory BIOS Non SpeedEasy Licensed advanced AWARD BIOS, Plug and Play ready PLCC 2Mbit flash BIOS Full supports for ACPI specification and OS directed power management On board IDE Supports two PCI Master IDE ports Supports up to PIO Mode 4 Timing Supports "Ultra DMA/33" synchronous DMA Mode transfers up to 33Mbytes/sec Integrated 16x32bit buffer for IDE PCI Burst Transfers I/O Feature Winbond W83977 EF I/O chip One floppy port supports up to two 3.5’’ or 5.25’’ floppy drives (360K/720K/1.2M/1.44M/2.88M) Two high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) with 16-byte send/receive FIFOs and support MIDI mode One enabled parallel port(SPP/EPP/ECP) at I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode(SPP/EPP/ECP) (IEEE1248 compliant) Provides protection circuit to prevent damage to parallel port when a connected printer is powered up or operated at higher voltage Support s IrDA ver1.0 SIR up to 115.2KB/Sec transfer rate as well as SHARP ASK-IR protocol Onboard SCSI Adaptec AIC 7890+3860 chip, supports up to 80MB/s transfer rate Support Ultra-2 SCSI (68pin), Ultra-wide SCSI (68pin) and Narrow SCSI (50pin) Onboard LAN On-board LAN with Intel 82558 chip, 10M/100Mbps Ethernet physical layer Support Boot on LAN, Wakeup on LAN, Full duplex mode Green Function Supports three green modes: Doze, Standby and Suspend; Lower power mode support (slow down, suspend to Memory, suspend to Harddisk) Green LED will blink when the system is in green status Bus Type 4 PCI local bus slots 2 ISA bus slot 1 AGP slot Advanced Feature On board LM75/80 monitors 2 fans speed, 7 power supply voltages, CPU temperature. Support LDCM and ManageEasy Supports both internal and external modem ring power-on Supports wakeup on LAN Supports SecurityEasy Option (Disable Power-btn, reset-btn, mouse and keyboard input until password accepted) Trend ChipAwayVirus on Guard Supports auto fan off when system enters suspend mode Supports power failure resume function Certificates NSTL Year 2000 Compliant Board Size 310mmx305mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
