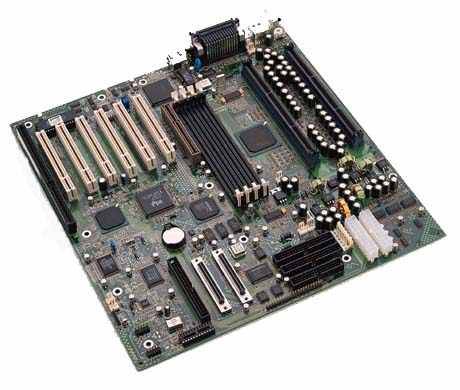

GeniuX 4 - QDI
ITEM DETAIL Chipset Intel 82443GX AGPset supports 100MHz SDRAM, Registered SDRAM Intel 82371EB PIIXE, supports: 1. Independent timing of up to 4 devices 2. PIO mode 4 transfers up to 14MB/sec 3. "Ultra 33" synchronous DMA mode transfers up to 33MB/sec 4. Integrated 16x32bit buffer for IDE burst transfers 5. Two USB ports Bus Type 6 PCI local bus slots 1 ISA bus slot 1AGP slot CPU Intel Pentium® II/III/Xeon™ Processors 400/450 MHz Dual Slot 2 support CPU Clock=Bus speed x4, x4.5, x5, x5.5 On-board 1.5V and 2.5V regulators, dual CPU power supply up to 2x17A CPU power supply 1.3V to 3.5V adjustable with VID function System Memory Four 168pin 3.3V unbuffered 100/66MHz DIMM sockets Support 8MB to 2GB memory Bus Speed 100MHz BIOS Licensed advanced Award BIOS, Plug and Play ready Dip flash BIOS, 2MB memory size Full support for ACPI specification and OS Directed Power Management On board IDE Supports 2 PCI Master IDE ports Support up to PIO mode 4 Timing Supports "Ultra 33" synchronous DMA Mode transfers up to 33MB/sec Integrated 16x32bit buffer for IDE PCI burst transfers I/O Feature Winbond W83977 EF I/O chip 1 floppy port supports up to two 3.5" or 5.25" floppy drives (360K/720K/1.2M/1.44M/2.88M) 2 high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) with 16-byte send/receive FIFOs and support MIDI mode 1 enhanced parallel port (SPP/EPP/ECP) at I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode (SPP/EPP/ECP) (IEEE 1248 compliant) Provides protection circuit to prevent damage to parallel port when a connected printer is powered up or operated at higher voltage Supports IrDA ver1.0 SIR up to 115.2KB/sec transfer rate as well as SHARP ASK.IR protocol Advanced Feature On-board W83782D monitoring chipset monitors 4 fans' speed, 8 power supply voltages, chassis intrusion and mainboard temperature Supporst LDCM (optional) Supports ManageEasy Supports both internal and external modem ring power-on Supports Wakeup on LAN Supports SecurityEasy -- disable power button, reset button, mouse and keyboard input until password accepted Trend ChipAwayVirus on Guard Supports auto fan-off when system enters suspend mode Supports power failure resume function Onboard SCSI Adaptec AIC 7890+8360 chip, supports up to 80MB/sec transfer rate Supports Ultra-2 SCSI (68pin), Ultra-wide SCSI (68pin) and Narrow SCSI (50pin) Onboard LAN On-board LAN with Intel 82558 chip, 10/100Mbps Ethernet physical layer Supports Boot on LAN, Wakeup on LAN, full duplex mode Green Function Support three Green modes: Doze, Standby and Suspend Lower power mode support slowdown, suspend to hard disk Green LED will blink when the system is in green status Board Size 320mm X 305mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
