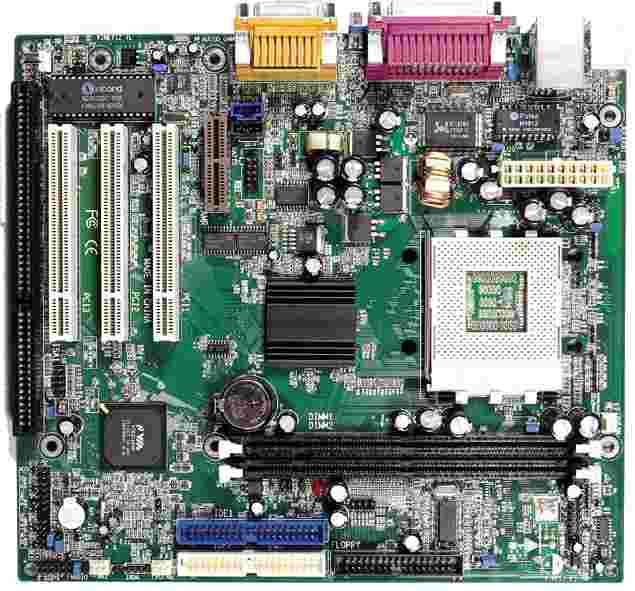

KinetiZ 7L- QDI
ITEM DETAIL Chipset VIA KLe-133 chipset North bridge:VIA VT8361 South bridge:VIA VT82C686B Bus Type 3 PCI slots 1 AMR 1 ISA CPU Support Socket A AMD Athlon and Duron Processors AMD Athlon Processors at 750/800/850/900/950MHz , 1.1GHz and future AMD Duron Processors at 600/650/700/750/800/850MHz and future System Memory Two 168 pin 3.3V PC133 DIMM sockets Supports up to 1G SDRAM maximum Supports 66/100/133 MHz Synchronous DRAM Power Management Support ACPI(Advanced configuration and power Interface) and ODPM(OS Directed power Management) Supports ACPI power status: S1, S4(STD), S5(soft-off) USB 4 USB ports (2 for I/O panel and 2 for front panel) USB 1.1 specification compliant Bus Speed 200MHz FSB BIOS 2 Mbit Flash ROM Licensed advanced AWARD BIOS Supports Plug and Play Supports ACPI and OS directed power management Storage system Two PCI Master IDE ports support up to 4 IDE devices Supports "Ultra ATA 33/66/100" One floppy port support up to two 3.5!± or 5.25!± floppy drives ( 360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk drive and ZIP drive I/O Feature 2 High Speed Serial Ports (16550 Fast UART Compatible) 1 Enhanced Parallel Port Support EPP/ECP/SPP 4 USB ports support USB 1.1 1 PS/2 keyboard port 1 PS/2 mouse port 1 Speaker-out/1 Line-in/1 Mic-in jacks 1 Game port/MIDI port 1 15-pin VGA connector IrDA port support up to 115.2Kb/s transfer rate All I/O ports can be enabled/disabled by BIOS setup Graphics Integrated 3D graphics engine in chipset Share memory architecture Onboard Audio/ Onboard LAN Build in VT82C686B Direct Sound AC'97 Audio AC97 2.1 compliant 16-bit stereo codec. Onboard Realtek RTL8100 10/100Mb Ethernet LAN Controller Boot from Lan support(K7L-L support) Advanced Feature PCI 2.2 Specification Compliant Provides Trend ChipAwayVirus on Guard Support software Power-down(eg. Windows98/Windows 2000) Support Wake up on LAN Support Wake up on Internal/External Modem Support system monitoring(monitors CPU and system temperatures, System voltages and fan speed) QDI Innovative Technology BootEasy, RecoveryEasy, BIOS-ProtectEasy(to protect the system BIOS from being attacked by virus such as CIH), ManageEasy System Health Monitoring CPU temperature, System temperature, CPU fan speed Chassis fan speed, 5 System Voltages Board Size MicroATX CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
