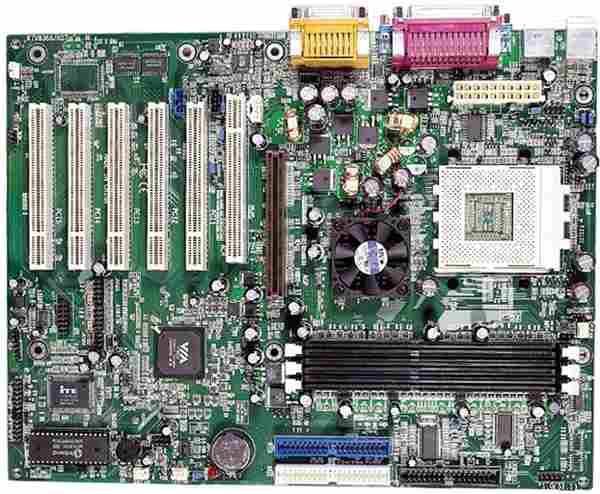

KuDoZ 7 - QDI
ITEM DETAIL Chipset North bridge:VIA KT266 South bridge:VIA 8233 Bus Type 5 PCI slots 1 ACR 1 AGP CPU Support Socket A AMD Athlon and Duron Processors AMD Athlon Processors at 750/800/850/900/950/1G/ 1.1G/1.2G/1.33G/1.4GHz and future AMD Duron Processors at 600/650/700/750/800/850/900/950MHz and future System Memory Three 184 pin 2.5V DDR sockets Supports up to 3G DDR module maximum Supports 200/266 MHz PC1600 and PC2100 DDR Module Power Management ACPI V1.0 and APM compliant Supports S0, S1, S3, S4, S5 ACPI power status USB 6 USB ports (2 for I/O panel and 4 for front panel) USB 1.1 specification compliant Bus Speed 200/266MHz FSB BIOS 2 Mbit Flash ROM Licensed advanced AWARD BIOS Supports Plug and Play Supports ACPI and OS directed power management Storage system Two PCI Master IDE ports support up to 4 IDE devices Supports ATA/100 One floppy port support up to two 3.5!± or 5.25!± floppy drives ( 360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk drive and ZIP drive I/O Feature 2 High Speed Serial Ports (16550 Fast UART Compatible) 1 Enhanced Parallel Port Support EPP/ECP/SPP 1 PS/2 keyboard port 1 PS/2 mouse port IrDA port support up to 115.2Kb/s transfer rate 1 SCR interface connector(smart card Reader) All I/O ports can be enabled/disabled by BIOS setup Graphics AGP 4X Support Universal AGP Slot Transfer rate up to 1 GB/s Onboard Audio KuDoz 7: No Audio KuDoz 7-A: Onboard AC'97 Audio AC'97 2.1 Compliant, 16-bit Stereo Codec KuDoz 7-C: Onboard Creative CT5880 PCI Hardware Audio Advanced Feature Wake up on LAN Wake up on Modem Trend ChipAwayVirus on Guard QDI Innovative Technology BootEasy, StepEasy, RecoveryEasy, BIOS-ProtectEasy, ManageEasy, LogoEasy System Health Monitoring CPU temperature, System temperature, CPU fan speed Chassis fan speed, 5 System Voltages Board Size ATX: 305*235MM CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
