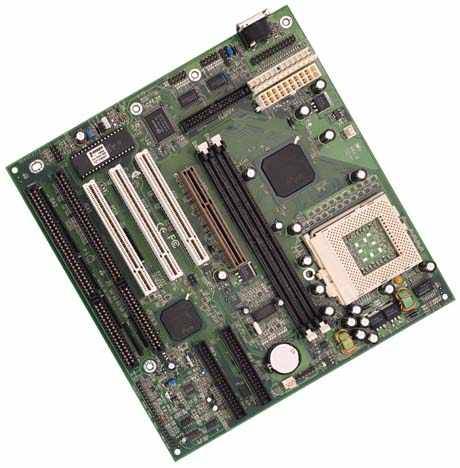

LegenX 7 - QDI
ITEM DETAIL Chipset Intel 82440LX AGPset supports 66MHz SDRAM Intel 82371EB(PIIX4E) supports: 1.Independent timing of up to 4 drivers 2.PIO mode 4 transfers up to 14MBytes/sec 3."Ultra 33"synchronous DMA mode transfers up to 33MBytes/sec 4.Two USB ports Bus Type PCI local bus slots 2 ISA slots 1 AGP slot CPU Intel 370 pin socket?processor 300/333/366/400/433/466MHz On-board 1.5V, 2.5V and 3.3V regulators Clock Chip ICWorks W48S87-04 (48pin) single chip with I2C System Memory Two 168pin 3.3V 66MHz DIMM sockets support synchronous DRAM up to 256MB and EDO DRAM up to 512MB BIOS Licensed advanced AWARD BIOS 2Mbit flash ROM, Plug and Play ready Trend ChipAwayVirus on Guard Full support for ACPI specification and OS Directed Power Management Supports SecurityEasy On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMs "Ultra DMA/33" synchronous DMA Mode transfers up to 33MBytes/sec I/O Feature Winbond W83977 EF I/O chip All I/O ports can be Enabled/Disabled in BIOS setup 1 Floppy port supports up to two 3.5'' or 5.25'' floppy drivers (360K / 720K / 1.2M / 1.44M / 2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) 1 Enhanced parallel port (SPP/EPP/ECP) IrDA port supports up to 115.2KB/Sec transfer rate Advanced Feature On-board Winbond W83782D supports system monitoring (system voltage & temperature, fan's speed and chassis intrusion) Supports LDCM (optional) Supports SecurityEasy, ManageEasy, LogoEasy and SpeedEasy™ Supports both ATX and AT power supply Supports both internal and external modem ring power-on with ATX power supply Supports wakeup on LAN with ATX power supply PS/2 keyboard power on (by password) with ATX power supply Trend ChipAwayVirus on Guard On-board switching voltage regulator with VID (support 1.3V to 2.05V) Provides infrared interface, USB interface Supports auto fan off when system enters suspend mode with ATX power supply Supports AC power-failure resume function with ATX power supply Green Function Supports Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports three green modes: Doze, Standby and Suspend Certificates NSTL Year 2000 Compliant Board Size 220mmx230mm (Baby AT) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
