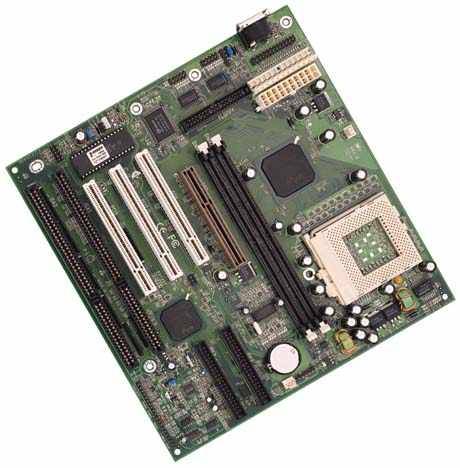

LegenX 8 - QDI
ITEM DETAIL Chipset Intel 82440LX AGPset supports 66MHz SDRAM Intel 82371EB(PIIX4E) supports: 1.Independent timing of up to 4 drivers 2.PIO mode 4 transfers up to 14MBytes/sec 3."Ultra 33"synchronous DMA mode transfers up to 33MBytes/sec 4.Two USB ports Bus Type 3 PCI local bus slots 1 ISA slots 1 AGP slot CPU Intel 370 pin socket® processor 300/333/366/400/433/466MHz On-board 1.5V, 2.5V and 3.3V regulators CPU power supply 1.3V to 2.05V adjustable with VID function Clock Chip ICWorks W48S87-04 (48pin) single chip with I2C System Memory Two 168pin 3.3V 66MHz DIMM sockets support synchronous DRAM up to 256MB and EDO DRAM up to 512MB On-board Audio Yamaha YMF740 PCI audio controller, YMF730 audio decoder (manufacturing option): PC97/PC98 specification compliant PCI Bus Power Management rev1.0 compliant PCI Bus Master for Audio Legacy Audio compatible On-board Mic-in, Line-in, Speaker-out connectors Hardware Volume Control BIOS Licensed advanced AWARD BIOS 2Mbit flash ROM Plug and Play ready Anti-Virus function Full support for ACPI specification and OS Directed Power Management On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMs "Ultra DMA/33" synchronous DMA Mode transfers up to 33MBytes/sec I/O Feature Winbond W83977 EF I/O chip All I/O ports can be enabled/disabled in BIOS setup 1 Floppy port supports up to two 3.5'' or 5.25'' floppy drivers (360K / 720K / 1.2M / 1.44M / 2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) 1 Enhanced parallel port (SPP/EPP/ECP) IrDA port supports up to 115.2KB/Sec transfer rate Advanced Feature On-board Winbond W83782D supports system monitoring (system voltage & temperature, fan's speed and chassis intrusion) Supports LDCM (optional) Supports SecurityEasy, ManageEasy, LogoEasy and SpeedEasy™ Supports both internal and external modem ring power-on Supports wakeup on LAN On-board PS/2 mouse and PS/2 keyboard socket, 2 USB ports PS/2 keyboard power on Provides infrared interface Supports auto fan off when system enters suspend mode Supports AC power failure resume function Trend ChipAwayVirus on Guard Green Function Supports Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports three green modes: Doze, Standby and Suspend Certificates NSTL Year 2000 Compliant Board Size 244mmx200mm (MicroATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
