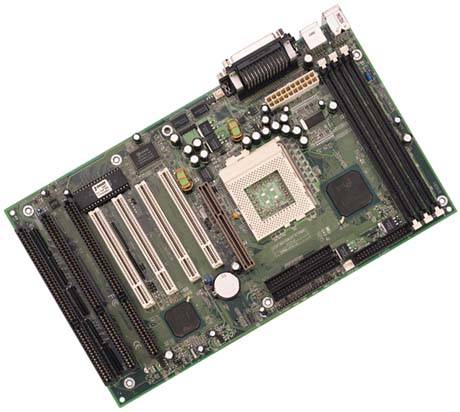

LegenX 9 - QDI
CPU Intel 370 pin socket?processor 300/333/366/400/433/466MHz On-board 1.5V, 2.5V and 3.3V regulators CPU power supply 1.3V to 2.05V adjustable with VID function Chipset Intel 82440LX AGPset supports 66MHz SDRAM Intel 82371EB(PIIX4E) supports: Independent timing of up to 4 drivers PIO mode 4 transfers up to 14MBytes/sec "Ultra 33"synchronous DMA mode transfers up to 33MBytes/sec Two USB ports Bus Type 4 PCI local bus slots 3 ISA slots 1 AGP slot Bus Speed 66MHz System Memory Three 168pin 3.3V 66MHz DIMM sockets support synchronous DRAM up to 384MB and EDO DRAM up to 768MB BIOS Licensed advanced AWARD BIOS 2Mbit flash ROM Plug and Play ready Full support for ACPI specification and OS Directed Power Management On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMs "Ultra DMA/33" synchronous DMA Mode transfers up to 33MBytes/sec I/O Feature Winbond W83977 EF I/O chip All I/O ports can be enabled/disabled in BIOS setup Supports DPM (Device Power Management) and ACPI (Advanced Configuration and Power Interface) Plug and Play 1.0A compliant 1 Floppy port supports up to two 3.5'' or 5.25'' floppy drivers (360K / 720K / 1.2M / 1.44M / 2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) 1 Parallel port (SPP/EPP/ECP) Supports IrDA ver1.0 SIR up to 115.2KB/Sec transfer rate as well as SHARP ASK-IR protocol Green Function Supports Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports three green modes: Doze, Standby and Suspend Green-LED will flash during green status. Clock Chip ICWorks W48S87-04 (48pin) single chip with I2C Advanced Feature On-board Winbond W83782D supports system monitoring (system voltage & temperature, fan's speed and chassis intrusion) Supports LDCM (optional) Supports SecurityEasy, ManageEasy, LogoEasy and SpeedEasy? Supports both internal and external modem ring power-on Supports wakeup on LAN On-board PS/2 mouse and PS/2 keyboard socket, 2 USB ports PS/2 keyboard power on by password Supports auto fan off when system enters suspend mode Supports AC power-failure resume function Trend ChipAwayVirus on Guard Board Size 305mmx178mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
