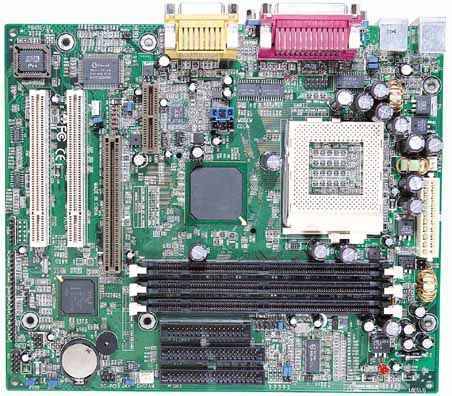

SynactiX 1E - QDI
ITEM DETAIL Chipset Intel 815E North Bridge: Intel 82815(GMCH) South Bridge: Intel 82801BA (ICH2) Slots 1 AGP/3 PCI/1 CNR Provide CNR slot to support CNR modem card, audio riser card, 10/100Mb Ethernet CNR card and 1Mb HomePNA card CPU Support Socket 370 processors Intel Pentium® III FC-PGA processors at500E/533EB/550E/600E/600E/600EB/650/667/700/733/750/800/800EB/850/866/933MHz and 1GHz Intel Celeron processors at 300A/333/366/400/433 /466/500/500A/533/533A/566/600/633/667/700/733 MHz System Memory Three 168 pin 3.3V PC133 DIMM sockets Support up to 512MB SDRAM Support 66/100/133MHz Synchronous DRAM Bus Speed 66/100/133MHz FSB Overclock up to 166MHz BIOS 4 Mbit Intel FirmWave Hub Licensed advanced AWARD BIOS Support Plug and Play Support ACPI and OS directed power managementt Storage system Two PCI Master IDE ports support up to 4 IDE devices Support ATA33/66/100 One Floppy port support up to two 3.5" or 5.25" floppy drives (360K/720K/1.2M/1.44M/2.88M) Support LS-120 floppy disk drive and ZIP drive I/O Feature 1 high speed Serial Ports (16550 Fast UART Compatible) 1 Enhanced Parallel Port support EPP/ECP/SPP 4 USB ports support USB1.1(2 USB on real I/O panel, 2 USB headers on board) 1 PS/2 keyboard port and 1 PS/2 mouse port 1 Speaker-out/1 Line-in/1 Mic-in jacks 1 Game port/MIDI port 1 15pin VGA connector IrDA port support up to 115.2Kb/s transfer rate All I/O ports can be enabled/disabled by BIOS setup Graphics Integrated Intel i752 3D graphics engine in chipset Provide 4M display cache via AIMM card Provide AGP 4X interface Universal AGP slot, support 3.3v/1.5v AGP card, Transfer rate up to 1GB/sec Automatically disable internal graphics when add-in graphics card is present Onboard Audio AC' 97 2.1 Compliant 16-bit Stereo Codec Upgradable to 6 channels audio with CNR card Advanced Feature Wakeup on LAN Wake up on Modem Alert on LAN Power-on by keyboard password Trend ChipAway Virus on Guard PC-cillin with killing function 4 Enhanced Diagnostic LED onboard to indicate POST status QDI Innovative Technology RecoveryEasy, SpeedEasy, BIOS-ProtectEasy, ManageEasy, LogoEasy System Health Monitoring CPU temperature, System temperature, CPU fan speed, Chassis fan speed, Backup fan speed, 8 System Voltages Power Management !! ACPI v1.0 and APM compliant Support S0, S1, S3, S5 ACPI power status Support Suspend to RAM LAN !! Onboard Integrate 10/100M fast Ethernet controller in chipset(manufacture optional) Board Size Micro ATX: 244x220mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
