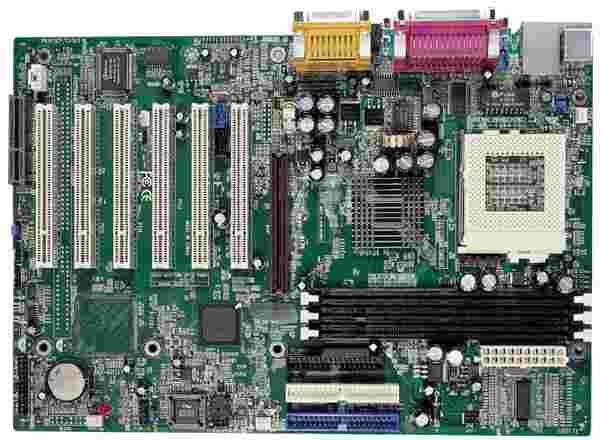

SynactiX 5EP - QDI
ITEM DETAIL Chipset Intel 815EP North Bridge: Intel 815EP(MCH) South Bridge: Intel 82801BA (ICH2) Slots 6 PCI slots, 1 CNR, 1 AGP CPU Support Socket 370 processors Intel Pentium III FC-PGA processors at 500E/533EB/550E/600E/600E/600EB/650/667/700/733/750/800/800EB /850/866/933MHz ,1GHz and future Intel Celeron processors at 300A/333/366/400/433 /466/500/500A/533/533A/566/600/633/667/700/733/766/800 MHz and future VIA Cyrix-III processors at 500/533/550/600/667/700/733/750MHz System Memory Three 168 pin 3.3V PC133 DIMM sockets Support up to 512MB SDRAM Support 100/133MHz Synchronous DRAM Bus Speed 100/133MHz FSB Overclock up to 166MHz BIOS 4 Mbit Intel FirmWave Hub Licensed advanced AWARD BIOS Support Plug and Play Support ACPI and OS directed power management Storage system Two PCI Master IDE ports support up to 4 IDE devices Support ATA/66/100 One Floppy port support up to two 3.5!± or 5.25!± floppy drives (360K/720K/1.2M/1.44M/2.88M) Support LS-120 floppy disk drive and ZIP drive I/O Feature 2 high speed Serial Ports (16550 Fast UART Compatible) 1 Enhanced Parallel Port support EPP/ECP/SPP 4 USB ports support USB1.1(2 USB on back panel, 2 USB on front header) 1 PS/2 keyboard port 1 PS/2 mouse port 1 Speaker+ 1 Line in+ 1 Mic 1 Game port IrDA port support up to 115.2Kb/s transfer rate All I/O ports can be enabled/disabled by BIOS setup AGP 4X Slot Provides AGP 4X interface Universal AGP slot Onboard Audio (SX5EP-A only) AC' 97 2.1 Compliant 16-bit Stereo Codec Upgradable to six channels audio with CNR card Advanced Feature 4 Enhanced Diagnostic LEDs onboard to indicate POST status CPU core voltage adjustment for overclocking Wakeup on LAN Wake up on Modem Alert on LAN Power-on by keyboard password Trend ChipAway Virus on Guard QDI Innovative Technology BootEasy,RecoveryEasy, SpeedEasy, BIOS-ProtectEasy, ManageEasy,LogoEasy,StepEasy Power management CPU temperature, System temperature, CPU fan speed, Chassis fan speed, 8 System Voltages Power Management ACPI v1.0 and APM Compliant Support S0,S1,S3,S5 ACPI power status Support suspend To RAM LAN (SX5EP-L only)Onboard 10/100M LAN(Intel 82559 core built-in) Board Size ATX: 305 x 210mm CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
