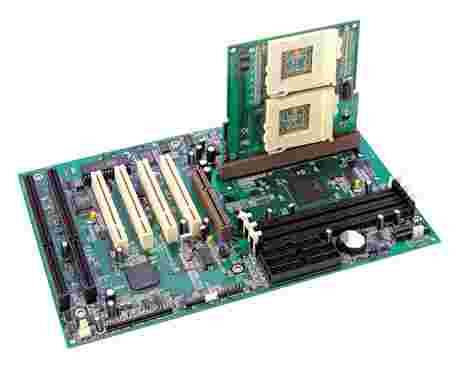

TwinMagic - QDI
ITEM DETAIL Chipset Intel 440BX AGPset: 82443BX, 82371EB (PIIX4E) Bus Type Four PCI slots Two ISA slots One AGP slot CPU Supports dual Intel Celeron PPGA processors from 266MHz to 500MHz with 66MHz FSB and future processors with 100MHz FSB speed by using Twin Magic Card. Supports all Intel Pentium II processors from 233MHz to 333MHz with 66MHz FSB and from 350MHz to 600MHz with 100MHz FSB. Supports all Intel Pentium III processors at 450/500/550 MHz with 100MHz FSB. Supports all Intel Celeron™ Processor up to 466MHz with 66MHz FSB. System Memory Three 168 pin 3.3V unbuffered 100/66MHz DIMM sockets Supports 8 to 768MB SDRAM BIOS Licensed advanced BIOS, supports flash ROM Bios with 2MB memory Size, plug and play ready. Supports IDE CD-ROM or SCSI boot up. On board IDE Two PCI PIO and Bus Master IDE ports. Two fast IDE interfaces supporting four IDE including IDE hard disks and CD-ROM drivers. Support up to Mode 4 timing. Supports "Ultra DMA/33" SDMA mode transferring up to 33 MB compatible with Ultra DMA/66 HDD. Integrated 16x32bit buffer for IDE PCI Burst Transfers. I/O Feature Use Winbond W83977EF super I/O chip. One Floppy port supporting up to two 3.5" or 5.25" floppy drives (360K/720K/1.2M/1.44M/2.88M) Two high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs. One parallel port at the I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode as SPP/ECP/EPP (IEEE 1284 compliant). Circuit protection provided, preventing damage to the parallel port when a connected printer is powered up or operates at a higher voltage. Supports LS-120 floppy disk drive. All I/O ports can be enabled/disabled in the Bios setup. Advanced Feature Provides Trend ChipAwayVirus On Guard. Provides on-board PS/2 mouse and PS/2 keyboard ports. Two USB ports supported. Provides infrared interface. Supports Windows 95/98 software power-down. Supports external modem ring power-on. Supports wake-up on LAN and wake-up on internal modem. Supports auto fan off when the system enters suspend mode. Supports LDCM (option) On-board LM80 supports system monitoring (monitors system temperature, voltages, chassis intrusion and fan speed) (manufacturing option). Provides management application such as ManageEasy. Supports keyboard password power-on function. System status resumes after AC power failure. Protects the system BIOS from being attacked by severe virus such as CIH, by enabling "Flash Write Protect" in CMOS setup. Green Function Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management). Supports three green modes: Doze, Standby and Suspend. Board Size 305 x 193mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
