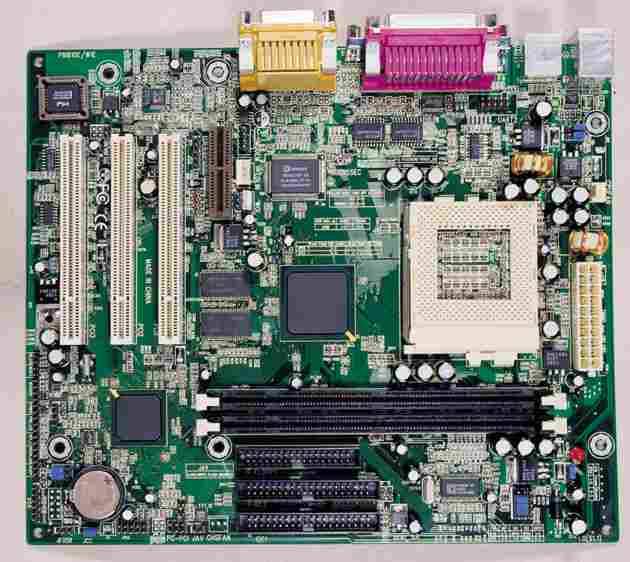

WinneX 1E - QDI
ITEM DETAIL Chipset Intel 82810E(GMCH): Support 66/100/133MHz system bus; 100MHz SDRAM interface supporting 256MB/512MB with 64Mb/128Mb technology; Integrated Graphics Controller; Integrated H/W Motion Compensation Engine; Integrated 230MHz DAC; Integrated Digital Video Out Port Support 4MB DC-133 Display Cache.. Intel 82801AA (ICH): PCI2.2 interface ( Bus Master IDE controller ¨C Ultra ATA/33 or Ultra ATA/66; FWH interface; LPC interface; AC!—97 2.1 interface; Intergrated System Management Controller; Alert-on-LAN. Bus Type 3 PCI local bus slots, 1 AMR slot CPU Intel Socket370 PIII FC-PGA processors 500/533EB/600E/600EB/650/667/700/733/750/800/800B MHz and future Intel Celeron Processor 266/300A/333/366/400/433/466 /500/500A*/533*/533A*/566*/600*/633*/667*/700* *:Intel new CPU Onboard 1.5V, 1.8V,2.5V and 3.3V regulators System Memory Two 168pin 3.3V 100MHz DIMM sockets supporting up to 512MB Support Suspend to RAM Bus Speed 133/100/66 MHz Overclock up to 150MHz BIOS Licensed advanced AWARD BIOS, 4 Mbit Intel FirmWave Hub, Plug and Play ready, Full supports for ACPI specification and OS directed power management On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMs Support "Ultra DMA/66" I/O Feature Winbond W83627HF I/O chip All I/O ports can be Enabled/Disabled by BIOS setup One floppy port supports up to two 3.5!—!— or 5.25!—!— floppy drivers Supports LS-120 floppy disk driver and ZIP drive Two high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) One enhanced parallel port(SPP/EPP/ECP) IrDA port support up to 115.2KB/Sec transfer rate Hardware Monitor 2 USB ports support USB1.1 Onboard Audio Intel AC!—97 2.1 Compliant 18-bit Stereo Codec Multiple Stereo Input Mixer Mono and Stereo Volume Control Low Power mode Registered Mircosoft® PnP Vendor ID Advanced Feature Support LDCM(optional) Support both internal and external modem ring power on Support WOL,Alert on LAN. I/O Chip support 2 fan speed, 9 power supply voltage, chassis intrusion and CPU/System temperature ChipAway anti-Virus.. Green Function Support Advanced Configuration and Power Interface(ACPI) specification and OS Directed Power Management Support five green status: Full on, Stop Grant, STR, STD, Soft-off. Board Size 244mmx188mm (MicroATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
