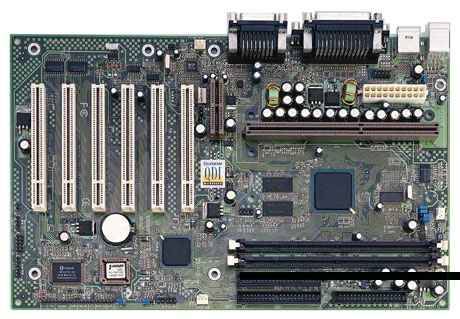

WinneX 2 - QDI
Chipset Intel 82810-DC100 (GMCH): 421 Mini BGA Support Intel Slot1 Processors with 66/100MHz system bus; 100MHz SDRAM interface supporting 256MB/512MB with 64Mb/128Mb technology; Integrated Graphics Controller; Integrated H/W Motion Compensation Engine; Integrated 230MHz DAC; Integrated Digital Video Out Port Support 4MB Display Cache. Intel 82801AA (ICH): 241 Mini BGA PCI2.2 interface (4 PCI for ICH0, 6 PCI for ICH); Bus Master IDE controller – Ultra ATA/33(ICH0) or Ultra ATA/66(ICH); USB Controller; SMBus Controller; FWH interface; LPC interface; AC’97 2.1 interface; Intergrated System Management Controller; Alert-on-LAN. Bus Type 6 PCI local bus slots 1 AMR 2 I2C Bus Connectors CPU Intel Pentium III processors 450/500MHz or higher Intel Pentium II processors up to 450 MHz Intel Celeron Slot1 processors up to 433MHz Onboard 1.5V, 1.8V, 2.5V and 3.3V regulators System Memory Two 168pin 3.3V 100MHz DIMM sockets supporting up to 512MB Support Suspend to RAM Bus Speed 100/66 MHz BIOS Licensed advanced AWARD BIOS, 2Mbit flash ROM, Plug and Play ready, Full supports for ACPI specification and OS directed power management On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMs Support "Ultra DMA/66" I/O Feature Winbond W83627HF I/O chip. All I/O ports can be Enabled/Disabled by BIOS setup. One floppy port supports up to two 3.5" or 5.25" floppy drivers. Supports LS-120 floppy disk driver and ZIP drive. Two high speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable). One enabled parallel port(SPP/EPP/ECP). IrDA port support up to 115.2KB/Sec transfer rate. Hardware Monitor. Onchip AGP Integrated 2D/3D Graphics Controller. Integrated H/W Motion Compensation Engine. Provides 4MB SDRAM Display Cache (for Intel 810 DC-100 only). Onboard Audio Intel AC’97 2.1 Compliant. 18-bit Stereo Codec. Multiple Stereo Input Mixer. Mono and Stereo Volume Control. Low Power mode. Registered Mircosoft® PnP Vendor ID. Advanced Feature Support LDCM Support both internal and external modem ring power on Support WOL I/O Chip support 2 fan speed, 9 power supply voltage, chassis intrusion and CPU/System temperature ChipAway anti-Virus. Support SpeedEasy, BIOS-ProtectEasy and ManageEasy. Green Function Support Advanced Configuration and Power Interface(ACPI) specification and OS Directed Power Management Support five green statuses: Full on, Stop Grant, STR, STD, Soft-off. Certificates NSTL Year 2000 Compliant Board Size 305mmx178mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
