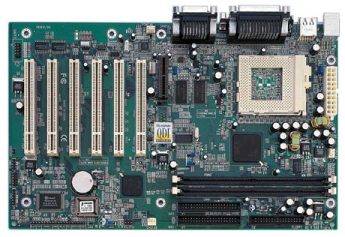

WinneX 5 - QDI
ITEM DETAIL Chipset Intel 82810-DC100: GMCH (Intel 82810-DC100)+ ICH (Intel 82801AA) Intel 810: GMCH0 (Intel 82810) + ICH (Intel 82801AA) Intel 810L: GMCH0 (Intel 82810) + ICH0 (Intel 82801AB) Bus Type 6 PCI slots 1 AMR CPU Supports Intel Celeron PPGA 370 Processor at 300A/333/366/400/433/466MHz with 66MHz bus speed. The CPU core voltage adjustable from 1.3V to 3.5V automatically through onboard switching voltage with VID (Voltage ID). Provides onboard 1.5V, 1.8V, 2.5V and 3.3V regulator. System Memory Provides two 168pin 3.3V unbuffered DIMM sockets Supports 64-bit wide DIMM modules with 100MHz SDRAM devices. Supports 8MB to 512MB SDRAM using 16Mb/64Mb technology. Supports 512MB SDRAM using 128Mb technology. Support Suspend to RAM. BIOS Licensed advanced AWARD BIOS, supports Firmware Hub (FWH) with 4Mbit flash memory, Plug and Play ready. Supports IDE CD-ROM or SCSI boot up. On board IDE Supports two PCI PIO and Bus Master IDE ports. Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD-ROM drivers. Supports up to PIO Mode 4 timing. Supports "Ultra DMA/33" SDRAM mode, transferring data up to 33MB/s. Supports "Ultra DMA/66" SDRAM mode, transferring data up to 66MB/s. Integrated 16x32bit buffer for IDE PCI Burst Transfers. I/O Feature Winbond W83627HF I/O chip One floppy port supporting up to two 3.5—— or 5.25—— floppy drivers with 360K/720K/1.2M/1.44M/2.88M format. Two high speed 16550 compatible UARTs (COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs. USB host interface supporting 2 USB ports. One joystick port. Infrared interface. All I/O ports can be enabled/disabled in the BIOS setup. Onchip AGP Integrated 2D/3D Graphics Controller. Integrated H/W Motion Compensation Engine. Provides 4MB SDRAM Display Cache (for Intel 810 DC-100 only). Onboard Audio Intel AC—97 2.1 Specification Compliant 18-bit Stereo Codec Multiple Stereo Input Mixer Mono and Stereo Volume Control Provides onboard Line-in Jack, Microphone Jack, Speaker-out Jack and MIDI/Joystick Connector. Advanced Feature PCI 2.2 Specification Compliant. Provides ChipAway Anti-Virus On Guard. Supports Windows 95/98 software power-down. Supports Keyboard Password Power-on function. Onboard I/O Winbond 83627HF supports system monitoring (monitors CPU and system temperatures, system voltages, chassis intrusion and fan speed). Supports management applications such as LDCM (LANDesk Client Manager) or ManageEasy. (manufacturing option). Provides onboard 3.3V regulator to support ATX power supply without 3.3V output. System status resumes after AC power failure. Supports QDI's innovation such as SpeedEasy, ManageEasy, BIOS-ProtectEasy. Protects the system BIOS from being attacked by severe virus such as CIH. Supports Suspend to RAM. Supports system shut down/alarm when the CPU temperature reaches the shut down/warning temperature presetting from "PC Health Status" in AWARD BIOS CMOS Setup. Supports overclocking feature, the system can be overclocked to 100/133MHz. Green Function Support ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management). Support four ACPI power status: Full-on, Stop Grant, STR, Soft-off. Certificates NSTL Year 2000 Compliant Board Size 305mmx190mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
