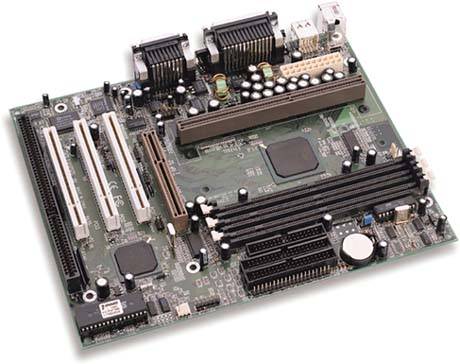

ZillioX 5 - QDI
Chipset Intel 82443ZX AGP Set supports 100MHz SDRAM Intel 82371EB (PIIX4E), Supports : 1. Independent timing of up to 4 drivers 2. Supports "Ultra 33" synchronous DMA mode transfers up to 33Mbytes/sec Bus Speed 66/100MHz CPU All of Intel Pentium® II Slot 1 Processors Intel Celeron™ Processors up to 500MHz Intel Pentium® III Slot 1 Processors CPU Clock = Bus speed up to x8 On-board 1.5V and 2.5V regulator CPU power supply 1.3V to 3.5V adjustable with VID function System Memory two 168pin 3.3V DIMM socket support up to 256MB SDRAM memory BIOS Licensed advanced AWARD BIOS, supports Flash ROM BIOS, Plug and Play ready Build-in NCR 53C810 SCSI BIOS Full support for ACPI specification and OS Directed Power Management On board IDE Supports 2 PCI PIO and Bus Master IDE ports Supports up to Mode 4 Timing Supports 2 Fast IDE interiaces for up to IDE device including IDE hard disks and CD ROMS Supports "Ultra DMA/33" synchronous DMA Mode transfers up to 33Mbytes/sec Integrated 16x32bit buffer for IDE PCI Burst Transfers On board audio Creative Vibra 16XV CT2511 sound chip Compatible with Sound Blaster, Sound Blaster Pro and Windows Sound System Integrated CQM stereo enhancement support Provides on-board line-in, microphone-in, speaker-out/line-out and MIDI/Joystick socket I/O Feature Winbond W83977 EF-AW I/O chip All I/O ports can be enabled/disabled by BIOS setup 1 Floppy port supports up to two 3.5" or 5.25" floppy drivers (360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) with 16-byte send/receive FIFOs and support MIDI mode 1 Enabled parallel port (SPP/EPP/ECP) at I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode (SPP/EPP/ECP) (IEEE1248 compliant) Provides protection circuit to prevent damage to parallel port when a connected printer is powered up or operated at higher voltage Green Function Supports Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports 3 green modes : Doze, Standby and Suspend Green LED will blink when the system is in green status Advanced Feature On-board WB83782D support system monitoring (monitors system voltage, system temperature & temperature of CPU, chassis intrusion and FAN speed) Supports keyboard password power-on Supports LDCM (optional) Supports ManageEasy Supports both internal and external modem ring power-on, Supports wakeup on LAN On-board PS/2 mouse and PS/2 keyboard socket 2 USB ports provides Anti-Virus function in BIOS and driver provides infrared interiace Supports auto fan off when system enters suspend mode Supports power failure resume function Certificates NSTL Year 2000 Compliant Board Size 244mm x 200mm (MicroATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
