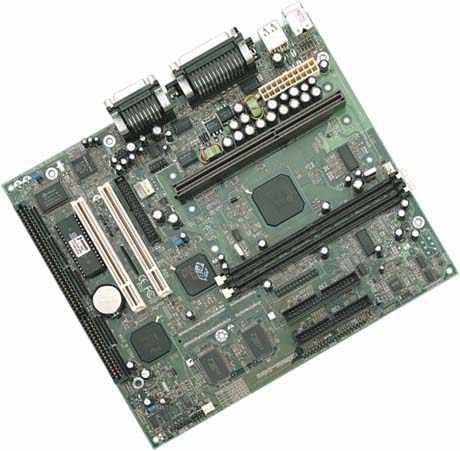

ZillioX 6 - QDI
Chipset Intel 82443ZX AGPset Intel 82371EB (PIIX4E), Supports : 1. Independent timing of up to 4 drivers 2. "Ultra 33" synchronous DMA mode transfers up to 33Mbytes/Sec Bus Type 2 PCI local bus slots 1 ISA bus slot CPU Intel P-II, P-III Processor Intel Celeron? Processor up to 500MHz Supports Slot I on-board 1.5V and 2.5V regulator. CPU power supply 1.3V to 3.5V adjustable with VID function System Memory Two 168pin 3.3V DIMM sockets support up to 256MB SDRAM memory (Register SDRAM up to 512MB) BIOS Licensed advanced Award BIOS supports Flash ROM BIOS, Plug and Play ready. Full supports for ACPI specification and OS directed power management Speedeasy or Jumper setting for frequency selection(manufacturing option) On board IDE Supports 2 PCI Master IDE ports Supports up to PIO mode 4 Timing Supports 2 Fast IDE interfaces for up to 4 IDE devices, support "Ultra DMA/33" synchroncus DMA Mode transfers up to 33MB/sec. Bus Speed 66/100MHz On board audio Based on the Creative CT2511 16bit sound chip. Compatible with Sound Blaster, Sound Blaster Pro and Windows Sound System Integrated CQM Stereo enhancement support Provides on-board line-in, microphone-in, speaker-out, line-out and MIDI/Joyst ick socket. Full MPC, MPCII and MPCIII compatible. On board AGP ATI RAGE IIC(or Rage Pro) AGP graphics controller Integraded 3D, 2D and video acclerators with palette DAC and quadruple clock synthesizer 2MB or 4MB SGRAM display memory on board and a SO-DIMM for extention Use 8MB SGRAM maximum Support a maximum resolution of 1600x1200 at 75Hz(Depending on the memory configuration) I/O Feature Winbond W83977 EF I/O chip. All I/O ports can be enabled/disabled by BIOS setup 1 Floppy port supports up to two 3.5" or 5.25" floppy drivers (360K/720K/1.2M/1.44M/2.88M) Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) with 16-byte send/receive FIFOs and supports MIDI mode 1 Enabled parallel port (SPP/EPP/ECP) at I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode (SPP/EPP/ECP) (IEEE1248 compliant) Provides protection circuit to prevent damage to parallel port when a connected printer is powered up or operated at higher voltage Green Function supports ACPI specification and OS Directed Power Management. Supports three green modes : Doze, Standby and Suspend Green LED will blink when the system is in green status Advanced Feature On-board WB83782D support system monitoring (monitors system voltage, system temperature & temperature of CPU, chassis intrusion and FAN speed) Supports keyboard password power-on. Support LDCM (optional). Supports both internal and external modem ring power-on Supports wakeup on LAN. On-board switching voltage regulator with VID (supports 1.3V to 3.5V). Provides Anti-Virus function in BIOS and driver. Provides infrared interface. Supports auto fan off when system enters suspend mode. Supports power failure resume function Certificates NSTL Year 2000 Compliant Board Size 244mm x 210mm (MircoATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
