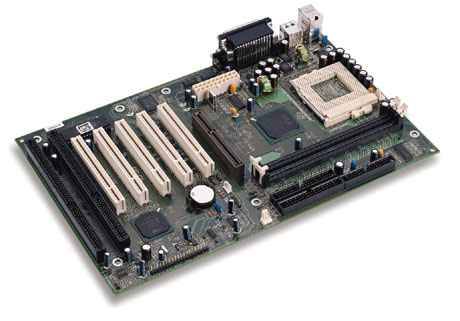

ZillioX 9 - QDI
ITEM DETAIL Chipset Intel 82440ZX AGP Set supporting 100MHz SDRAM Intel 82371EB (PIIX4E), Supporting : 1. Independent timing of up to 4 drivers 2. PIO mode 4 transfers up to 14MB/sec 3. Support "Ultra 33" synchronous DMA mode transfers up to 33MB/sec 4. Two USB ports Bus Type 5 PCI local bus slots 2 ISA slots 1 AGP slot CPU Intel Socket 370 Processors On-board 1.5V, 2.5V and 3.3V regulators CPU power supply 1.3V to 2.05V adjustable with VID function System Memory two 168pin 3.3V unbuffered 100/66MHz DIMM socket supporting up to 256MB SDRAM memory (registered SDRAM up to 512MB) Bus Speed 100/66 MHz Multiplier X2 up to X8 BIOS Licensed advanced AWARD BIOS 2MB Flash ROM, Plug and Play ready Non volatilized CMOS backup Full supports for ACPI specification and OS Directed Power Management On board IDE Two PCI Master IDE ports support up to 4 IDE devices including IDE hard disks and CD ROMS "Ultra DMA/33" synchronous DMA Mode transfers up to 33MB/sec I/O Feature Winbond W83977 EF-AW I/O chip All I/O ports can be enabled/disabled by BIOS setup 1 Floppy port supports up to two 3.5" or 5.25" floppy drivers Supports LS-120 floppy disk driver and ZIP drive 2 High speed 16550 fast compatible UARTs (COM1/COM2/COM3/COM4 selectable) 1 Enabled parallel port (SPP/EPP/ECP) IrDA port support up to 115.2KB/sec transfer rate Advanced Feature On-board Winbond 83782D supports system monitoring (system voltage & temperature, FAN speed and Chassis intrusion) Support LDCM and ManageEasy (Manufacturing optional) Supports both internal and external modem ring power-on, Supports wakeup on LAN PS/2 keyboard power on SpeedEasy, LogoEasy, SecurityEasy Supports auto fan off when system enters suspend mode Support AC power failure resume function Trend ChipAway Virus on Guard Green Function Supports Advanced Configuration and Power Interface (ACPI) specification and OS Directed Power Management Supports 3 green modes : Doze, Standby and Suspend Green LED will flash during green status Certificates NSTL Year 2000 Compliant Board Size 305mm x 193mm (ATX) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : QDI Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
