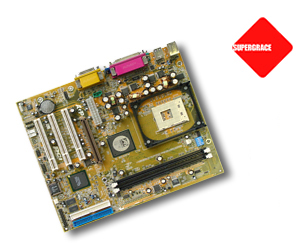

SG-A4M3D - Supergrace
BASIC DESCRIPTION CPU Intel Pentium 4(400/533MHz Front Side Bus)(PGA478 Type) CHIPSET ATI A4(RADEON IGP 340)(400/533MHz FSB)/ATI A4(RADEON IGP 330)(400MHz FSB) BIOS CACHE L2 Cache is CPU Built-in MEMORY Two DDR Sockets Supports up to 1GB (DDR200/266) INTEGRATED INPUT AND OUTPUT ... Support Two PCI Enhanced IDEs PIO Mode 3, Mode 4 and Ultra DMA 33/66/100 Channels. Twin Headers for Four IDE ... Devices Including IDE HDDs and CDROMs Support Two FDDs of 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB ... One ECP/EPP Parallel Port, Two 16550A UART Serial Ports, Four USB Ports (Two USB Ports by Optional Adapter Cables), PS/2 Mouse Port, PS/2 Keyboard Port INTEGRATED SOUND CARD ... Integrated AC97 Controller with Standard AC97 Codec ... PnP, Full-Duplex, Sound Blaster and Direct Sound Ready ... Line-in, Line-out, Mic-in and MIDI/Game Port PLUG & USE EQUIPMENT ... Plug and Play Specification 1.1 ... Plug and Play for DOS, Window 3.x, and Windows 95/98/2000/XP PC97/98 ... PC97/98 Ready, ... PC99 Color Connector POWER MANAGEMENT ... Support SMM, APM and ACPI. ... Comply to Energy Starˇˇ"GreenˇˇPC" Program ... Supports WAKE-ON-LAN (WOL) ... Supports Modem Ring-in Wake Up PCI BUS ... PCI 2.2 AGP BUS ... AGP 2.0/1.0 VOLTAGE CONTROL MANAGEMENT ... On Board VRM 9.0 BUTTERY ... On-board Lithium Battery SIZE OF MAINBOARD ... 230mm x 244mm, ... Micro ATX Form Factor EXTENSION SLOT ... Three PCI Bus Slots ... One Accelerated Graphics Ports (AGP) OTHER DETAILED DESCRIPTION AGP Graphic On Chip(RV100 Core) ... Integrated 128-bit 3D/2D Graphic Engines ... Hardware Motion Compensation and IDCT & Hardware MPEG2 Decode (DVD) ... 4 to 64MB Frame Buffer Shared with System Memory ... Integrated 24-bit 300MHz RAMDAC ... Support Dual Display - CRT/TV (Radeon IGP 340 only) ... Integrated TV Encorder, Macrovision for Support, Composite, S-Video Out (Via Cable Adapter), Pal & NTSC Support ... Resolution up to 2048x1600x32bpp ... DirectX & OpenGL API Support CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SUPERGRACE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
