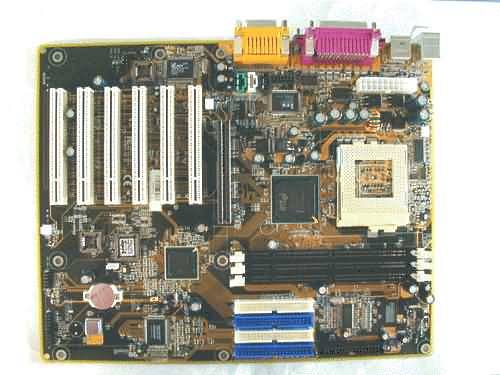

AE25- Shuttle
Specifications: Single Socket370 for Intel PIII Processor Intel Celeron FC-PGA with 66 / 100 MHz FSB Intel Pentium III FC-PGA with 100/133 MHz FSB Intel Pentium III FC-PGA2 with 133 MHz FSB VIA Cyrix III with 100/133 MHz FSB Chipsets (North) Intel 82815EP (B-stepping) Memory Controller Hub Host interface AGP interface SDRAM interface (South) Intel I/O Controller Hub 2 (ICH2) AC97 Controller UDMA 33/66/100 IDE interface USB interface Integrated LAN MAC Power management meet ACPI requirement RTC Board Size ATX Form Factor Memory 3 x 168-Pin DIMM Sockets Support 8MB to 512MB PC100,133 SDRAM LPC I/O ITE 8712F Comply with Intel Low Pin Count Interface Specification Rev. 1.0 ACPI V. 1.0 compliant Built in H/W monitor feature Two 16C550 UARTs Supports two standard Serial Ports Supports IrDA 1.0/ASKIR protocols Supports Smart Card Reader protocols Built in Smart Card Reader IEEE 1284 Parallel Port Standard mode -- Bi-directional SPP compliant Enhanced mode -- EPP V. 1.7 and V. 1.9 compliant High speed mode -- ECP, IEEE 1284 compliant Floppy Disk Controller Supports two 360K/ 720K/ 1.2M/ 1.44M/ 2.88M floppy disk drives Enhanced digital data separator 3-Mode drives supported Keyboard Controller Game Port Dedicated MIDI Interface Support power-failure resume and power button de-bounce Hardware Monitor Built in ITE 8712F 2 thermal inputs from remote thermal resistor to monitor system temperature 1 thermal inputs from thermal diode to monitor CPU temerature 8 voltage monitor inputs 1 chassis intrusion input Monitors 3 fan tachometer inputs Smart Guardian Controller to provide programmable fan speed automatic control PCI/AGP/CNR Slots 6PCI + 1AGP + 1CNR for Maximum Expansion PCI 2.2, 32-bit BUS Master Slots AGP V2.0 compliant (Support external AGP 2x,4x device) 1 x CNR (Communication Networking Riser) BIOS 4Mb BIOS with Full ACPI, APM, DMI, Green, PnP Support boot from FDD / IDE / ATAPI / SCSI / USB device CPU Multiplier Ratio Selections Support FSB adjustment per 1MHz from 66 ˇV 166MHz Support CPU Vcore adjustment per 0.01V Support AGP (Vddq) adjustment per 0.1V Support Vio adjustment per 0.1V Support IRQ manual assign table PC'99 Color-Coded I/O Ports 2 x USB Ports (Support Hot-Plug Function) 2 x Com Ports, 1x Parallel Port (EPP, ECP) 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port 1x game / MIDI Port 1x Line in, 1x Line out, 1x Mic UltraDMA/100 IDE controller On board Promise 265R 2 x UltraDMA/100 Bus Master IDE from ICH2 2 x UltraDMA/100 Bus Master IDE from promise 265R to support RAID 0, RAID1 function 80-pin Cable Backward Compatible Legacy ATAPI Devices ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 Supports H/W Audio controller C-Media 8738 - PCI-6CH/LX Support 5.1 speakers, C3DX positional audio in 6 CH speaker mode HRTF-3D positional audio, supporting Direct Sound 3D and A3D interface Legacy SBPRO compatible Varies clocking Setting FSB: 66/75/83/100/112/124/133/150/160/166MHz (BIOS Setting) Multiplier: x3/x3.5/x4/x4.5/x5/x5.5/x6/x6.5/x7/x7.5/x8 (BIOS Setting) ATX 20 pin Power Connector ATX 20-pin Power Connectors for 3.3V, 5V, 5VSB and 12V Power Management Support multiple system suspend types - suspend to DRAM, suspend to disk, and all with hardware automatic wake-up Connectors & Headers 1 x Floppy Port (Up to 2.88 MB, 3 Mode) 3 x FAN Power Connector 1 x Wake On LAN 1 x Wake On Ring IrDA Tx/Rx Header 2 x Front Panel USB Connector Header AUX in (White Color) TAD in (Green Color) CD Audio in (Black Color) 1 x Intruder Header Jumpers Clear CMOS BIOS Boot block protection Accessory 1 CD-ROM disk contains: Intel IDE Driver, Intel INF installation utility, CMEDIA Audio Driver, ITE Smart Guardian Utility, Promise IDE driver, User manuals 1 user manual 1 ATA66/100 IDE cable 1 FDD cable 1 Heat Sink attached on North Bridge 1 AGP RM CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
