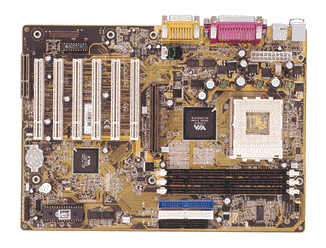

AK11- Shuttle
Specifications: Chipset: VIA VT8363A VIA VT8363A North Bridge 100-133MHz DDR host interface PC 133 SDRAM/VCM interface PCI interface ACPI Compliant VIA VT82C686B South Bridge PCI to ISA bridge UDMA 33/66/100 IDE interface USB interface AC97 Controller Integrated Super I/O controller Integrated hardware monitoring controller Power management meet ACPI requirement RTC CPU: Socket A type CPU AMD Athlon CPU with 100-133MHz DDR FSB AMD Duron CPU with 100 DDR FSB FSB & Multiplier Auto setting Form Factor ATX form factor Memory DIMM x 3, Up to 1.5GB of PC100 /PC133 SDRAM / VCM Audio S/W audio with AC 97 2.0 compliant CODEC Expansion Bus 1 x AGP, support AGP 2.0 compliant device 6 x PCI 1 x CNR I/O Built in VIA VT82C686B Support 2 UARTs for Complete Serial Ports Support 1 IR port Support 1 Multi-mode parallel port Support 1 Floppy Disk Controller Support PS2 keyboard and mouse IDE Ultra DMA 33/66/100 mode PIO mode 4 Bootable from LS120, ZIP drive, CD-ROM H/W Monitor Built in VIA686B Five positive voltage Three temperature Two fan-speed monitoring Power Management APM 1.2 ACPI 1.0 BIOS Award PnP BIOS DMI 2.3 2 Mb flash memory BIOS FSB Setting Back Panel 2 Serial Ports 1 Parallel Port (SPP, EPP, ECP) 1 PS/2 Keyboard Port 1 PS/2 Mouse Port 2 USB Port 1x Game / MIDI Port 1x Line in, 1x Line out, 1x Mic Other connectors and jumpers Suspend switch and LED 1 x ATX Power connector 2 x Fan Power connectors 2 x Front Panel USB Connector Header AUX in CD Audio in Wake on LAN Wake on modem 1 x IR Others CPU Voltage Auto Detecting (CPU PnP) Support Suspend to Ram Supports PC 99 requirement Support AC Power Fail Resume Wake-On-Ring Wake-On-Alarm K/B and Mouse wake up Accessories 1 CD-ROM disk contains: The VIA 4-in-1 driver for Windows 95, 98, 98SE, ME, NT contains: IDE Bus master (2.1.41 or later), VIA AGP (3.52 or later), IRQ Routing Driver (1.3a or later), VIA Registry (ACPI), VIA audio driver, Manual in PDF format. 1 User Manual 1 FDD cable 1 IDE ATA66/100 cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
