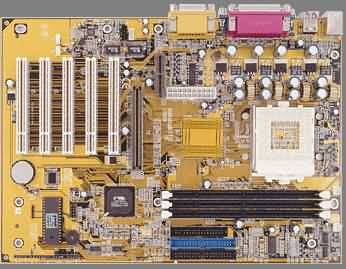

AK12- Shuttle
Specifications: Chipset VIA VT8363 North Bridge 100MHz DDR host interface PC 133 SDRAM/VCM interface PCI interface ACPI Compliant VIA VTC82C686B South Bridge PCI to ISA bridge Supports ATA 33/66/100 IDE Interface USB interface AC97 Controller Integrated Super I/O controller Integrated hardware monitoring controller Power management meet ACPI requirement RTC CPU: Socket A type CPU AMD Athlon CPU with 100MHz DDR FSB AMD Duron CPU with 100MHz DDR FSB FSB & Multiplier Auto setting Form Factor ATX form factor 305mm * 220mm Memory DIMM x 3, Up to 1.5GB of PC100 /PC133 SDRAM / VCM Audio S/W audio with AC ˇ¦97 2.0 compliant CODEC Expansion Bus 1 x AGP, support AGP 2.0 compliant device (1X,2X,4X AGP mode) 5 x PCI 1 x AMR I/O Built in VIA VT82C686B Support 2 UARTs for Complete Serial Ports Support 1 IR port Support 1 Multi-mode parallel port Support 1 Floppy Disk Controller Support PS2 keyboard and mouse IDE Ultra DMA 33/66/100 mode PIO mode 4 Bootable from LS120, ZIP drive, CD-ROM H/W Monitor Built in VIA686B Four positive voltage Three temperature Two fan-speed monitoring Power Management APM 1.2 ACPI 1.0 BIOS Award PnP BIOS DMI 2.3 2 Mb flash memory BIOS FSB Setting Back Panel 2 Serial Ports 1 Parallel Port (SPP, EPP, ECP) 1 PS/2 Keyboard Port 1 PS/2 Mouse Port 4 USB Port 1x Game / MIDI Port 1x Line in, 1x Line out, 1x Mic , 1x IrDA header Other connectors and jumpers Suspend switch and LED 1 x ATX Power connector 2 x Fan Power connectors 2 x Front Panel USB Connector Header Primary IDE and Secondary IDE Secondary CD in Wake on LAN Wake on modem Dual color LED header Others CPU Voltage Auto Detecting (CPU PnP) Support Suspend to RAM Supports PC 99 requirement Support AC Power Fail Resume Wake-On-Ring Wake-On-Alarm Accessories 1 CD-ROM disk contains: The VIA 4-in-1 driver for Windows 95, 98, 98SE, NT, ME contains: VIA audio driver, Manual in PDF format 1 User Manual 1 FDD cable 1 IDE ATA66/100 cable CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
