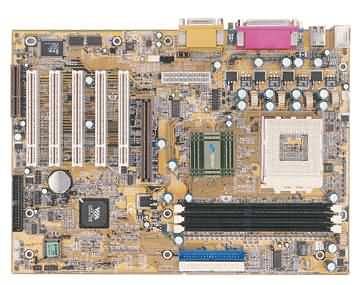

AK21- Shuttle
Specifications: CPU Support: Socket 462 CPU AMD Thunderbird CPU AMD Spitfire CPU Chipsets (North) VIA VT8363 Host interface 100 MHz Double Data Rate (DDR) transfer on FSB PC 133 SDRAM/VC SDRAM interface PCI interface AGP interface support AGP 2.0 ACPI Compliant (South) VIA Apollo VT8231 Integrated Fast Ethernet Controller with 1 / 10 / 100 Mbit capability Integrated USB Controller with two root hub and four function ports Dual channel UltraDMA-33 / 66 /100 master mode EIDE controller AC-link interface for AC-97 audio codec and modem codec Integrated SoundBlaster Pro / DirectSound compatible digital audio controller LPC interface Integrated Keyboard Controller with PS2 mouse support Integrated Real Time Clock Integrated Super IO Controller Integrated Hardware Monitor Controller ACPI v1.0 Compliant APM v1.2 Compliant Front Side Bus 66 / 75 / 83 / 100 / 112 / 124 / 133 / 140 / 150MHz Multiplier x3, x3.5, x4, x4.5, x5, x5.5, x6, x6.5, x7.0, x7.5, x8,x8.5, x9 (Bios setting optional) Memory DIMM x 3, Up to 1.5GB of PC100 / PC133 / VC100 / VC133 SDRAM Audio S/W audio with AC'97 1.3 compliant CODEC 10/100 Fast Ethernet: (Optional) Standard MII interface PHYceiver on board to support 10/100Mb fast ethernet Expansion Slot AGP: 1 x AGP slot support AGP 2.0 (1x/2x/4x transfer rate) PCI: 5 x PCI slot, PCI 2.2 compliant AMR: 1 x AMR slot, support MC97 modem riser card PCI Riser: 1 x PCI riser I/O: (built in VT8231) Support 2 Serial Ports Support 1 Ir connector, IrDA 1.0 SIR and IrDA 1.1 FIR compliant Support 1 Multi-mode parallel port Support 1 Floppy Disk Controller IDE Ultra DMA 33/66/100 mode PIO mode 4 Bootable from SCSI, LS120, ZIP drive, CD-ROM H/W Monitoring: (built in VT8231) Support 5 voltage or temperature sensing Support 2 fan-speed monitoring channels Support input channel for thermal diode in Intel Pentium II / Pentium III Support external thermister or internal bandgap temperature sensing Support internal core VCC voltage sensing Power Management APM 1.2 compliant ACPI 1.0 compliant Bios Award PnP BIOS DMI 2.3 4Mb LPC flash memory FSB Setting On Board Ports / Connectors / Jumpers / Headers (front/back panel, PC99 compliant color) Ports Ports: 1 x PS2 Keyboard 1 x PS2 Mouse 2 x USB (back) 1 x LAN (back, optional) 1 x Parallel 1 x Serial 1 x VGA (no function) 1 x Line in 1 x Line out 1 x Mic Connectors 3 x fan connectors Wake-On-Ring Connector Wake-On-Lan connector AUX in (Shrouded/White) TAD in (Shrouded/Green) CD Audio in (Shrouded/Black) COM 2 Jumpers Suspend switch and LED Headers 2 x USB (front) 1 x Line in (front, share with back panel) 1 x Line out (front, share with back panel) 1 x Mic in (front, share with back panel) Other Features CPU Voltage Auto Detecting (CPU PnP) Support Suspend to Ram Supports PC 99 requirement Wake-On-Ring Wake-On-Alarm Accessory: 1 CD-ROM Disk The VIA 4-in-1 driver for Windows 95, 98, 98SE, NT Audio CODEC driver Multi-language manuals 1 User Manual 1 FDD cable 1 IDE ATA66/100 cable 1 COM 2 cable with standard bracket User manual CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
