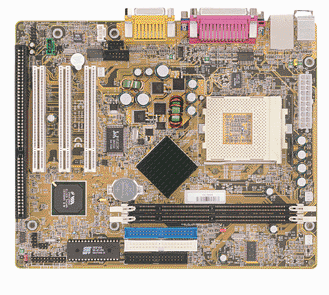

MK20- Shuttle
Specifications: CPU Support: Socket A CPU AMD Athlon/Duron CPU with 200MHz/266Mhz FSB Chipsets: VIA KLE1336 (North bridge) VIA VT8361 High Performance Athlon CPU Interface Internal Accelerated Gr0raphics Port (AGP) Controller Concurrent PCI Bus Controller Advanced High-Performance DRAM Controller (South bridge) VIA VT82C686B UDMA 33/66/100 IDE interface USB interface AC97 Controller Integrated Super I/O controller Integrated hardware monitoring controller Power management meet ACPI requirement RTC Form Factor Micro-ATX Front Side Bus Including 100/103/105/110/112/120/124/133/140/150 MHz Power Controller: Single Phase VRM9.0 compliant PWM Richtek 9224C Memory: 2 x 168-pin DIMM DIMM x 2, Up to 1GB of PC100 /PC133 SDRAM Graphics Built in Trident AGP controller Audio VIA Audio driver with AC 97 compliant CODEC Ethernet (optional) On board Realtek 8139C IEEE 802.3u 100Base-T specifications compliant 10 Mb/s and 100 Mb/s operation Supports Wake-On-LAN function Expansion Slot PCI: 3 PCI slots, PCI 2.2 compliant Support 32 bit PCI master mode device 133 Mbyte/sec Maximum Throughput ISA: 1 ISA slot Support 16 bit ISA mode device I/O: Built in VIA VT82C686B Support 2 UARTs for Complete Serial Ports Support 1 IR port Support 1 Multi-mode parallel port Support 1 Floppy Disk Controller Support PS2 keyboard and mouse IDE: Built in VT82C686B Dual channel master mode PCI supporting four Enhanced IDE devices Transfer rate up to 33MB/sec to cover PIO mode 4, multi-word DMA mode 2 drives, and UltraDMA-33 interface and increased reliability using UltraDMA-66/100 transfer protocols On board 2 IDE port H/W Monitor: Built in VIA686B Five positive voltage (one internal), three temperature (one internal) and two fan-speed monitoring Programmable control, status, monitor and alarm for flexible desktop management External thermister or internal bandgap temperature sensing Automatic clock throttling with integrated temperature sensing Internal core VCC voltage sensing Flexible external voltage sensing arrangement (any positive supply and battery) Power Management ACPI v1.0 Compliant APM v1.2 Compliant Bios: Built in 2Mb Flash ROM Award PnP BIOS DMI 2.3 Bios FSB and Multiplier setting Bootable from LS120, ZIP drive, CD-ROM, SCSI On Board Ports / Connectors / Jumpers / Headers (front/back panel) Ports: 2 x IDE 1 x Floppy Back Panel Connectors 1 x PS/2 Keyboard 1 x PS/2 Mouse 2 x USB 1 x RJ45 Ethernet with built in transformer (optional) 1 x VGA 1 x COM 1 1 x Parallel 1 x Game Port 1 x Line_In, Lin_out, Mic_in On Board Jumpers Clear CMOS On Board Connectors 1 x COM 2 On Board Headers 2 x USB 3 x FAN Front Panel Audio Ear_out, Mic_in Wake On Lan IR header Front Panel for Power_LED, Power_On, Speaker, Reset, IDE_LED Intrusion detect System temperature detect with fixed sensor Accessory: CD-ROM Disk VIA 4-1 driver VIA audio driver Realtek Ethernet driver User manual in PDF file IDE Cable: 1 x UDMA 66/100 cable Floppy Cable: 1 x Floppy Cable User manual: 1 x print user manual CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
