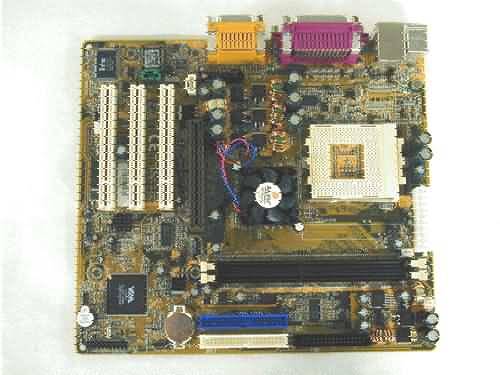

MK30- Shuttle
Specifications: CPU Support: Socket A CPU AMD Duron CPU with 200 / 266MHz FSB AMD Athlon CPU with 200 / 266MHz FSB Chipsets: VIA KT266 (North bridge) VIA VT8366 High Performance Athlon CPU Interface Integrated full featured Accelerated Graphics Port (AGP) controller Integrated high bandwidth 266MB/S 8-bit Vlink Host controller Integrated advanced high performance DDR DRAM controller (South bridge) VIA VT8233 Built in high bandwidth 266MB/S 8-bit Vlink Host controller Integrated Fast Ethernet Controller with 1/10/100Mb capability Integrated USB controller with three root hub and six function ports Integrated dual channel UDMA 33/66/100 master mode EIDE controller LPC interface for Low Pin Count interface to Super-I/O or ROM Integrated Keyboard Controller with PS2 mouse support Integrated DS12885-style Real Time Clock with extended 256 byte CMOS RAM and Day/Month Alarm for ACPI System Management Bus Interface Sophisticated PC99-Compatible Mobile Power Management Integrated Plug and Play Controller Form Factor Micro-ATX Front Side Bus Including 100/103/105/110/112/120/124/133/140/150 MHz Multiplier From x5 to x 12.5 by hardware jumper Memory: 2 x 184-pin DIMM Supports 4 banks up to 2 GB DRAMs (512Mb x8/x16 DRAM technology) for un-buffered / register DDR SDRAM module Graphics N/A Display Cache N/A Audio VIA Audio driver with AC 97 compliant CODEC USB Hub: Built in VT8233 Integrated USB Controller with three root hubs and six function ports USB v.1.1 and Intel Universal HCI v.1.1 compatible Support up to 6 ports 10/100 Fast Ethernet (optional) Integrated Fast Ethernet controller in VT8233 On board SEEQ (MII interface compliant) PHYceiver Support 1 / 10 / 100 MHz full and half duplex operation Expansion Slot AGP: 1 AGP slot Support AGP 2.0 compliant, 1X, 2X, 4X AGP device Supports SideBand Addressing (SBA) mode (non-multiplexed address / data) PCI: 3 PCI slots, PCI 2.2 compliant Support 32 bit PCI master mode device 133 Mbyte/sec Maximum Throughput I/O: Winboad 83697HF Meet LPC Spec. 1.01 Integrate Hardware Monitor functions Support up to four 3.5-inch or 5.25-inch floppy disk drives Two high-speed 16550 compatible UARTs Support IrDA version 1.0 SIR, Consumer IR with Wake-Up function Support PS/2 compatible bi-directional parallel port Support Enhanced Parallel Port (EPP) - Compatible with IEEE 1284 specification Support Extended Capabilities Port (ECP) - Compatible with IEEE 1284 specification Game Port MIDI Port IDE: Built in VT8233 Dual channel master mode PCI supporting four Enhanced IDE devices Transfer rate up to 33MB/sec to cover PIO mode 4, multi-word DMA mode 2 drives, and UltraDMA-33 interface and increased reliability using UltraDMA-66/100 transfer protocols On board 2 IDE port Monitoring: On board Winbond 83697HF Smart fan control system, support "Thermal Cruise" and "Speed Cruise" 2 thermal inputs from Pentium II/III /FC-PGA Celeron thermal diode output and system temperature sensor 6 positive voltage inputs (+12V, -12V, +5V, -5V, +3.3V, Vcore) 2 intrinsic voltage monitoring (Vbat, +5VSB) 2 fan speed monitoring inputs 2 fan speed control Build in Case open detection circuit WATCHDOG comparison of all monitored values Programmable hysteresis and setting points for all monitored items Over temperature indicate output Automatic Power On voltage detection Beep Issue SMI#, IRQ, OVT# to activate system protection Winbond Hardware Doctor Support Intel LDCM TM / Acer ADM compatible Power Management ACPI v1.0 Compliant APM v1.2 Compliant Supports multiple system suspend types: power-on suspends with flexible CPU/PCI bus reset options, suspend to DRAM, and suspend to disk (soft-off), all with hardware automatic wake-up Multiple suspend power plane controls and suspend status indicators Thermal alarm on either external temperature sensing circuits Support Power Fail Resume function Bios: Built in 2 / 4Mb Flash ROM Award PnP BIOS DMI 2.3 Bios FSB and Multiplier setting Bootable from LS120, ZIP drive, CD-ROM, SCSI On Board Ports / Connectors / Jumpers / Headers (front/back panel) Ports: 2 x IDE 1 x Floppy Connectors 1 x PS/2 Keyboard 1 x PS/2 Mouse 2 x USB 1 x RJ45 Ethernet with built in transformer (optional) 2 x COM 1 x Parallel Jumpers Multiplier setting Clear CMOS Headers 4 x USB 3 x FAN Front Panel Audio Ear_out, Mic_in Wake On Lan IR header S3 power status with LED Front Panel for Power_LED, Power_On, Speaker, Reset, IDE_LED Intrusion detect System temperature detect with fixed sensor Accessory: CD-ROM Disk VIA 4-1 driver VIA audio driver VIA Ethernet driver User manual in PDF file IDE Cable: 1 x UDMA 66/100 cable Floppy Cable: 1 x Floppy Cable User manual: 1 x print user manua CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SHUTTLE Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
