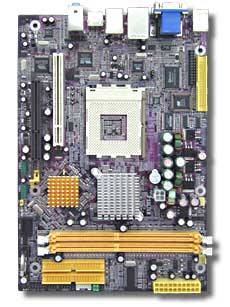

SL-B7C-FGR - SOLTEK
Chipset VIA KM400A + VT8237 Processor AMD Socket 462 on board. Front Side Bus 400/333/266MHz Front Side Bus. Memory 2 x 184-pin DDR DIMM Sockets. Supporting unregistered non-ECC DDR 400/333/266/200 DRAM up to 2GB. Expansion Slots 1 x AGP 8X/4X Slot. 1 x PCI Slot. On-Board EIDE 2 x ATA133/100/66 IDE connectors supporting up to 4 IDE devices. On-Board SATA 2 x Serial ATA connectors supporting 2 Serial ATA HDDs. (by VT8237) Integrated Super I/O 1 x Floppy Port. 1 x PS/2 Mouse Port. 1 x PS/2 Keyboard Port. 1 x Gigabit LAN Port. 1 x Parallel Port. (via optional cable) 1 x Serial Port. 8 x USB 2.0/1.1 Ports. (8 integrated, 4 via optional cables) Audio Ports. 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable) 1 x VGA Port. RAID 2 x Serial ATA connectors supported by VT8237. (RAID0, 1) IEEE1394 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable) Audio 6-Channel AC'97 Audio. LAN Gigabit 10/100/1000 LAN Function. BIOS AMI BIOS. Flash Memory for easy upgrade. Form Factor 180mm x 260mm Other Features BIOS FSB Setting. BIOS Writing Protection. BIOS AGP, DIMM, Vcore Voltage Setting. BIOS Multiplier Setting. SmartDoc. Anti-burning Shield. (optional) RedStorm2 Overclocking Technology. (optional) Soltek H/M Monitor. STR Function. (optional) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOLTEK Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
