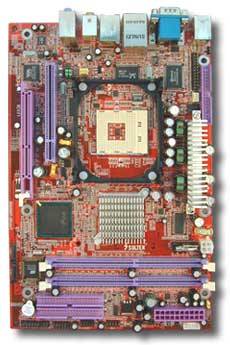

SL-B8E-F2 - SOLTEK
Chipset Intel 865G + ICH5 Processor Socket 478 on board. Supporting P4 CPU, including Prescott CPU up to 3.4GHz(+) and Hyper Threading Technology. (Willamette 1.75V CPU and Celeron 1.75V CPUs not supported) Front Side Bus 800/533/400MHz Front Side Bus. Memory 2 x 184-pin DDR DIMM Sockets. Supporting unregistered non-ECC DDR 400/333/266 DRAM up to 2GB. Supporting Dual-Channel. Expansion Slots 1 x AGP 8X/4X Slot. 1 x PCI Slot. On-Board EIDE 2 x ATA100/66/33 IDE connectors supporting up to 4 IDE devices. On-Board SATA 2 x Serial ATA connectors supporting 2 Serial ATA HDDs. Integrated Super I/O 1 x Floppy Port. 1 x PS/2 Mouse Port. 1 x PS/2 Keyboard Port. 1 x 10/100 LAN Port. 1 x Parallel Port. (via optional cable) 1 x Serial Port. 8 x USB 2.0/1.1 Ports. (4 integrated, 4 via optional cables) 8-Channel Audio Ports. 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable) 1 x VGA Port. RAID -- IEEE1394 2 x IEEE1394 Ports. (1 integrated, 1 via optional cable) Audio 8-Channel AC'97 Audio. LAN 10/100 LAN Function. BIOS AMI BIOS. Flash Memory for easy upgrade. Form Factor 180mm x 270mm Other Features BIOS FSB Setting. BIOS Writing Protection. BIOS AGP, DIMM, Vcore Voltage Setting. BIOS Multiplier Setting. SmartDoc. Anti-burning Shield. (optional) RedStorm Overclocking Technology. (optional) Soltek H/M Monitor. STR Function. CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOLTEK Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
