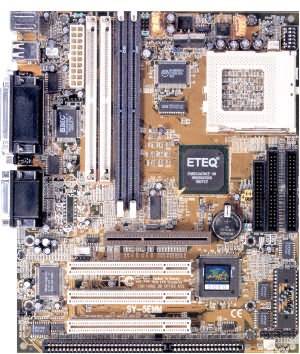

SY-5EMM- SOYO
Model SY-5EMM Description - 100MHz Host Bus Pentium Processor Based MicroATX Mainboard with AGP Port Processor 321-pin ZIF Socket 7 - Intel Pentium Processor with MMX Technology up to 233MHz - Supports AMD-K6 (166~300 MHz) and AMD-K6-2 (266~450 MHz) and AMD-K6-3 400 MHz* - Supports Cyrix /IBM 6x86MX (PR200 ~ 266), 6x86MII (300 ~ 366) - Supports IDT WinChip2(200~300) and WinChip (266~300) - Supports Rise (PR233 ~ 266) Chipset - ETEQ 82C6638/6629 AGP Chipset L2 Cache - 512KB Pipelined Burst SRAM on board System Memory - Two 168-pin DIMM sockets (8/16/32/64/128/256MB Module) - Two 72-pin SIMM sockets (8/16/32/64MB Module) - Supports up to 512MB EDO and SDRAM On-Board Audio Chip - Avance ALS 120 audio chip - Supports 8/16-bit mono/stereo digital audio from 4K ~ 48KHz - Supports full duplex operation and 3D sound effect Expansion Slots - One 124-pin AGP slot (Accelerated Graphics - Three 32-bit Bus Mastering PCI slots (v2.1 compliant) - One 16-bit ISA slots (One PCI/ISA shared slot) On Board Ultra I/O Chip - SMC 37C669 chip - 2 x RS-232 serial ports (16550 UART compatible) - 1 x Parallel printer port (SPP/EPP/ECP mode) - 1 x FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver Two Ultra DMA-33 IDE ports - Supports two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DAM/33 - 2 x PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, plug and play, DMI functions - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD /LS120 / ZIP, and Year 2000 compliant - 1 Mbit Flash ROM Board Dimensions - Four layers, 24.4 cm x 20 cm (9.6" x 7.9") - MicroATX form factor Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - 2 x USB ports - 2 x D-Sub 9-pin male Serial ports - 1 x D-Sub 25-pin female printer port - Audio I/O : LINE-OUTx1, LINE-Inx1, MIC JACK x1 - Game Port FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
