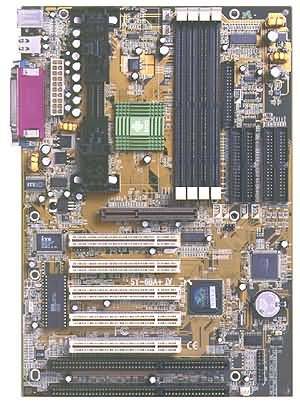

SY-6BA+ IV- SOYO
Model SY-6BA+ IV Description - 66/100MHz FSB Slot 1 Based Intel 440BX ATX Motherboard Processor Supports the following processors - 100MHz FSB Pentium III Processors 450/500/550/600 MHz - 100MHz FSB Pentium II 350/400/450 MHz - 66MHz FSB Pentium II 233/266/300/333 MHz - 66MHz FSB Celeron Processors 266~300MHz - 66MHz FSB Celeron Processors 300A~433 MHz with integrated 128KB full speed L2 cache Chipset - Intel 440BX Chipset - 66/100MHz CPU FSB System Memory - Four 168-pin SDRAM DIMM sockets support up to 1GB - PC100 DIMM support - Provides ECC (Error Checking Correction) capability Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.1 compliant) - Two 16-bit ISA slots (one shared ISA/PCI slot) - One AGP slot (v1.0 compliant) On Board Ultra I/O Chip - ITE 8671F-A chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Ultra DMA 33 & 66 IDE ports - Four independent channels for up to Eight IDE devices - Two channels support up to PIO mode 4 & UDMA 33 - Two channels support up to ATA-66 - Four PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD LS120/ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 30.5 cm x 19 cm (12" x 7.5") - ATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB and battery low - CPU fan four speed control and monitor - FAN speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode Double stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male serial ports - One D-Sub 25-pin female printer port FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
