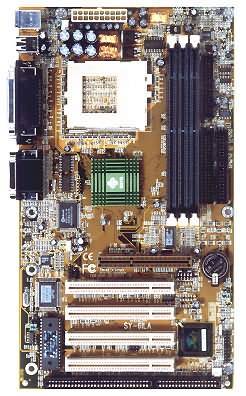

SY-6ILA- SOYO
Model SY-6ILA Description - Socket-370 Based ATX Mainboard with AGP port Processor - Socket-370 for Celeron Processors 300A~533*MHz with built-in 128KB L2 cache - Supports for 66MHz FSB Chipset - Intel 82440LX chipset System Memory - Three 168-pin DIMM sockets support up to 384MB On-Board 3D Audio Subsystem - Creative ES1373 PCI Plug & Play audio chip - 16 bit stereo full duplex with 48KHz sampling rate - High quality with 90dB SNR Expansion Slots - Four 32-bit Bus Mastering PCI slots (v2.1 compliant) - One 16-bit ISA slots (One PCI/ISA Shared slot) - One AGP Slot (v1.0 compliant) On Board Ultra I/O Chip - Winbond W83977EF I/O chip - Two RS-232 serial ports (16550 UART compatible) - One Parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver Two Ultra DMA-33 IDE ports - Supports two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA/33 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, plug and play, DMI functions, and Year 2000 complaint - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD / LS120 / ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 30.5 cm x 17 cm (12" x 6.7") - ATX form factor PC Health Monitoring - Seven on-board voltage monitors for CPU core, CPU I/O, +5V, -5V, +12V, -12V, and 3.3V - Supports up to 4 speeds of fan control - Fan speed monitor - CPU on-die thermal diode for CPU temperature monitoring - Battery low detection Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male Serial ports - One D-Sub 25-pin female printer port - One Joystick Ports - Audio I/O : LINE-Outx1 , LINE-Inx1, MIC JACK x1 FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
