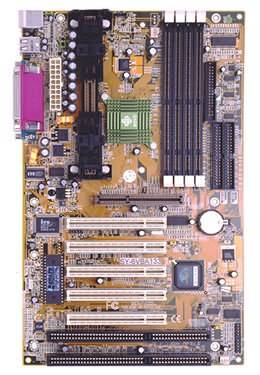

SY-6VBA 133- SOYO
Model SY-6VBA 133 Description - 66/100/133MHz FSB Slot 1 Based ATX Motherboard Processor Supports the following processors - 100MHz FSB Pentium III Processors 450/500/550/600 MHz - 100MHz FSB Pentium II 350/400/450 MHz - 66MHz FSB Pentium II 233/266/300/333 MHz - 66MHz FSB Celeron Processors 266~300MHz - 66MHz FSB Celeron Processors 300A~433 MHz with integrated 128KB full speed L2 cache Chipset - VIA 693A Chipset - 66/100/133MHz CPU FSB System Memory - Four 168-pin SDRAM DIMM sockets support up to 1.5GB - PC133/PC100 DIMM support - Provides ECC (Error Checking Correction) capability Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.1 compliant) - Two 16-bit ISA slots (one shared ISA/PCI slot) - One AGP slot (v1.0 compliant) On Board Ultra I/O Chip - ITE 8671F-A chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Two Ultra DMA66/33 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 66/33 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD LS120/ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 30.5 cm x 19 cm (12ˇ¨ x 7.5ˇ¨) - ATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB and battery low - CPU fan four speed control and monitor - FAN speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode Double stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male serial ports - One D-Sub 25-pin female printer port FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
