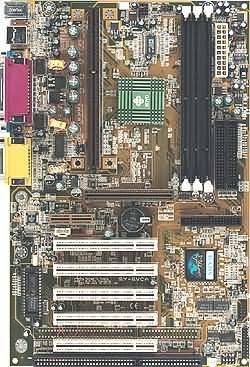

SY-6VCA- SOYO
Model SY-6VCA Description - 66/100/133MHz FSB Slot 1 Based ATX Motherboard Processor Supports the following processors - 133MHz FSB Pentium III Processors 533+ MHz - 100MHz FSB Pentium III Processors 450/500/550+ MHz - 100MHz FSB Pentium II 350/400/450 MHz - 66MHz FSB Pentium II 233/266/300/333 MHz - 66MHz FSB Celeron Processors 266~300MHz - 66MHz FSB Celeron Processors 300A~433 MHz with integrated 128KB full speed L2 cache Chipset - VIA 694X Chipset - Supports 66/100/133 MHz FSB System Memory - Three 168-pin SDRAM DIMM sockets support up to 1.5GB - Support PC-100/PC-133 SDRAM - Provides ECC (Error Checking Correction) capability Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.2 compliant) - One 16-bit ISA slot - One Universal AGP slot (support 1x/2x/4x mode) - One Audio/Modem Riser Connector (Revision 1.0) On Board Audio Subsystem - AC97 Codec on board to provide software audio solution Built-in Chipset Super I/O - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Two Ultra DMA 33/ 66 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 2 Mbit Flash ROM - SOYO AI-BIOS Board Dimensions - Four layers, 30.5 cm x 20.0 cm (12ˇ¨ x 7.9ˇ¨) - ATX form factor Enhanced PC Health Monitoring - Built-in chipset hardware monitoring functions - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V and VBAT - CPU fan speed control & monitor - Precision CPU temperature monitoring through CPU on-die thermal diode - Battery Low detection Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - One D-Sub 25-pin female printer port - Two serial port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
