SY-7ISM- SOYO

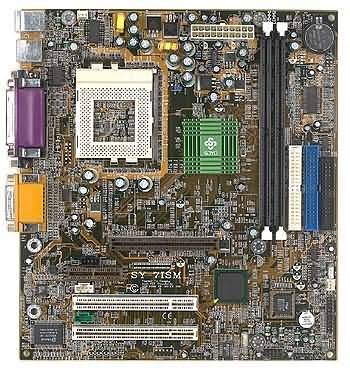

Model SY-7ISM Description - 66/100/133MHz FSB Socket 370 Based MicroATX Motherboard Processor - FC-PGA 370 for Pentium III 500+ MHz with 133MHz FSB - FC-PGA 370 for Pentium III CPU with 100MHz FSB - Socket 370 for Celeron Processors with 66MHz FSB - Socket 370 for Cyrix Joshua CPU Chipset - Intel 815 (Solano) Chipset - Supports 66/100/133 MHz FSB System Memory - Two 168-pin SDRAM DIMM sockets support up to 512MB - Provides ECC (Error Checking Correction) capability Expansion Slots - Two 32-bit Bus Mastering PCI slots (V2.2 compliant) - One AGP slots (4X mode ) - One Audio/Modem Riser Connector (Revision 1.0) Built-in Chipset Direct AGP VGA - Supports AGP 2x/1x mode On Board Software Audio Subsystem - AC97 Codec on board On Board Ultra I/O Chip - Winbond W83627HF LPC I/O chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver - Two serial ports with cable and bracket Two Ultra DMA 33/66/100 IDE Ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33/66/100 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP - 4 Mbit Flash ROM - Built-in Security Feature Board Dimensions - Four layers, 24.4 cm x 22 cm - MicroATX form factor Enhanced PC Health Monitoring - Built-in I/O chip hardware monitoring functions - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB and VBAT - CPU fan four speed control & monitor - FAN speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode - Battery Low detection Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - One D-Sub 25-pin female printer port - One D-Sub 15-pin female VGA port - One D-Sub 9-pin serial port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port FCC Class B and CE EMI Regulation Compliant PC99 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
