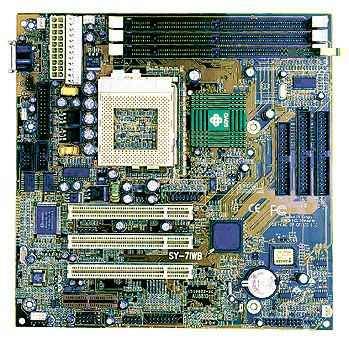

SY-7IWB- SOYO
Model SY-7IWB Description - 66/100MHz FSB Socket 370 Based Baby AT Motherboard Processor - Socket 370 for Celeron Processor 300A~500 MHz with 66MHz FSB - Integrated 128KB full speed L2 cache Chipset - Intel 82810 (Whitney) Chipset - Supports 66/100 MHz FSB System Memory - Three 168-pin SDRAM DIMM sockets support up to 512MB - Provides ECC (Error Checking Correction) capability Expansion Slots - Three 32-bit Bus Mastering PCI slots (v2.2 compliant) - One Audio/Modem Riser Connector (Revision 1.0) Built-in Chipset AGP VGA - Embedded 3D Graphic Accelerator on chipset - Supports AGP 2x & 1x mode and motion compression On Board AC'97 Codec - AC97 Codec on board to support software audio application On Board Ultra I/O Chip - Winbond W83627HF LPC I/O chip - Two RS-232 serial ports (16550 UART compatible) with cable for connection - One Parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver - Two USB prots with extra cable for connection(Option) Two Ultra DMA-33/66 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI functions and Year 2000 compliant - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD / LS120 / ZIP - 4 Mbit Flash ROM Board Dimensions - Four layers, 22 cm x 20 cm (8.7" x 7.9") - Baby AT form factor Enhanced PC Health Monitoring - Built-in I/O chip hardware monitoring functions - Nine on-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB and Battery - CPU fan four speed control & monitor - FAN speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode - Battery Low detection Other I/O Connectors - One AT keyboard port - One D-Sub 15-pin female VGA header with cable - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 with cable for connection - One game port with cable for connection FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
