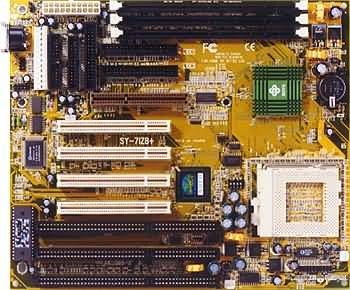

SY-7IZB+ - SOYO
Model SY-7IZB+ Description - Socket-370 Based Baby AT Motherboard with AGP port Processor - Socket-370 for Intel Celeron Processors 300A~533 MHz with 66MHz FSB - Integrated 128KB full speed L2 cache Chipset - Intel 82440ZX two chip AGPset - Supports 100/66MHz FSB System Memory - Three 168-pin DIMM sockets support up to 256MB Expansion Slots - Four 32-bit Bus Mastering PCI slots (v2.1 compliant) - Three 16-bit ISA slots - One AGP Slot(v1.0 compliant) On Board Ultra I/O Chip - Winbond W83977EF I/O chip - Two RS-232 serial ports (16550 UART compatible) - One Parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88MB FDD) - Provides IrDA port with optional cable for transceiver Two Ultra DMA-33 IDE ports - Supports two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA/33 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, plug and play, DMI functions, and Year 2000 complaint - Supports multiple-boot from E-IDE / SCSI /CD-ROM / FDD / LS120 / ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 22 cm x 26 cm (8.7" x 10.24") - Baby AT form factor PC Health Monitoring - Seven on-board voltage monitors for CPU core, CPU VTT, +5V, -5V, +12V, -12V, and 3.3V - CPU fan control - Fan speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode FCC Class B and CE EMI Regulation Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
