SY-7SBB - SOYO

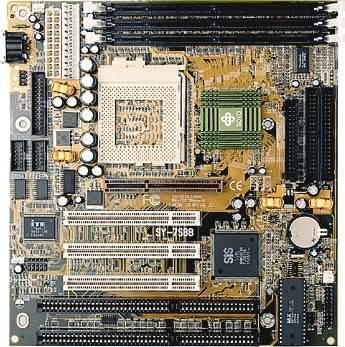

Model SY-7SBB Description - 66/100MHz FSB Socket 370 Based Baby AT Montherboard Processor - Socket 370 for Celeron Processors 300A~500+ MHz with 66MHz FSB - Integrated 128KB full speed L2 cache Chipset - SiS 600 Chipset - Supports 66/100 MHz FSB System Memory - Three 168-pin SDRAM DIMM sockets support up to 768MB - Provides ECC (Error Checking Correction) capability Expansion Slots - One AGP slot (1X /2X mode) - One ISA bus slot - Three 32-bit Bus Mastering PCI slots (V2.2 compliant) On Board Supper I/O Chip - IT8661 super I/O chip - Two RS-232 serial ports (16550 UART compatible) with cable for connection - One parallel printer port (SPP/EPP/ECP mode) with cable for connection - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD) with cable for connection - Provides IrDA port with optional cable for transceiver - Two USB ports with extra cable for connection(Option) Two Ultra DMA 33 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ ZIP Purple - 2 Mbit Flash ROM Board Dimensions - Four layers, 22 cm x 21 cm (8.7ˇ¨ x 8.27ˇ¨) - Baby AT form factor PC Health Monitoring - Built-in chipset hardware monitoring functions - On-board multiple sets of voltage monitors - FAN speed monitor - Precision CPU temperature monitoring Other I/O Connectors - One AT keyboard port FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
