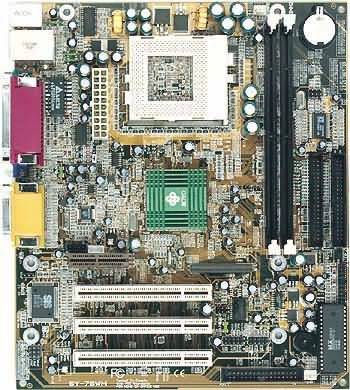

SY-7SWM- SOYO
Model SY-7SWM Description - 66/100MHz FSB Socket 370 Based Micro ATX Motherboard Processor - Socket 370 for Celeron Processors 300A~500+ MHz with 66MHz FSB - FC-PGA 370 for Pentium III Processor 533+ MHz with 100MHz FSB Chipset - SiS630 Chipset - Supports 66/100 MHz FSB System Memory - Two 168-pin SDRAM DIMM sockets support up to 1GB - Provides ECC (Error Checking Correction) capability - Supports PC-100 / PC-133 SDRAM Expansion Slots - Three 32-bit Bus mastering PCI slots (V2.2 compliant) - One Audio/Modem Riser Connector (Revision 1.0) Embedded 3D Ultra AGP VGA - Supports AGP 4x mode On Board Audio Subsystem - AC97 Codec on board to provide software audio solution On Board Ultra I/O Chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver Two Ultra DMA 33/66 IDE Ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 33/66 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/SCSI/CD-ROM/FDD/LS120/ZIP - 2 Mbit Flash ROM Board Dimensions - Four layers, 24.4cm x 20.0cm(9.6"x7.9") - Micro ATX form factor Enhanced PC Health Monitoring - Built-on chip hardware monitoring functions - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB and VBAT - FAN speed monitor - Precision CPU temperature monitoring through CPU on-die thermal diode - Battery Low detection Double Stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - One D-Sub 25-pin female printer port - One D-Sub 15-pin female VGA port - One serial port - Audio I/O: LINE-Outx1 , LINE-Inx1, MIC JACK x1 - One game port - One RJ-45 LAN port FCC Class B and CE EMI Regulation Compliant PC98 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
