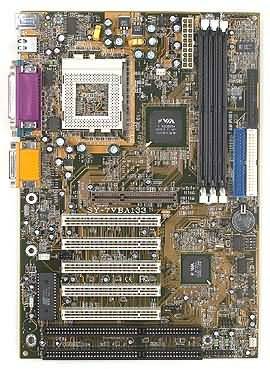

SY-7VBA133- SOYO
Model SY-7VBA 133 Description - 66/100/133 MHz FSB FC-PGA 370 Based ATX Motherboard Processor - FC-PGA 370 Pentium III Processors with 100/133MHz FSB - Socket 370 for Celeron Processors with 66/100MHz FSB Chipset - VIA 693A + 686A Chipset - 66/100/133MHz CPU FSB System Memory - Three 168-pin SDRAM DIMM sockets support up to 1.5GB - PC133/PC100 DIMM support - Provides ECC (Error Checking Correction) capability On Board Audio Subsystem - AC97 CODEC on board to provide audio solution Expansion Slots - Five 32-bit Bus Mastering PCI slots (V2.1 compliant) - Two 16-bit ISA slots (one shared ISA/PCI slot) - One AGP slot (v1.0 compliant, 2x mode) On Board Ultra I/O Chip - Two RS-232 serial ports (16550 UART compatible) - One parallel printer port (SPP/EPP/ECP mode) - One FDD port (Supports LS120, 3 mode, 1.2/1.44/2.88 MB FDD - Provides IrDA port with optional cable for transceiver - Provides 4 USB ports (2 rear, 2 front) Two Ultra DMA66/33 IDE ports - Two independent channels for four IDE devices - Supports up to PIO mode 4 and Ultra DMA 66/33 - Two PCI bus mastering ATA E-IDE ports Boot-Block Flash BIOS - Award PCI BIOS with green, ACPI, APM, PnP, DMI, functions and Year 2000 compliant - Supports multiple-boot from E-IDE/ SCSI/ CD-ROM/ FDD/ LS120/ZIP - 2 Mbyte Flash ROM Board Dimensions - Four layers, 30.5 cm x 21 cm (12" x 8.26") - ATX form factor Enhanced PC Health Monitoring - On-board voltage monitors for CPU Vcore, VTT, +5v, +12V, 3.3V, 5VSB - FAN speed monitor - Precision CPU temperature monitoring through thermal sensor Double stack Back-Panel I/O Connectors - PS/2 Mini-DIN mouse & keyboard ports - Two USB ports - Two D-Sub 9-pin male serial ports - One D-Sub 25-pin female printer port - Audio I/O : LINE-Out x 1, LINE-In x 1, MIC JACK x 1 - One game port FCC Class B and CE EMI Regulation Compliant PC99 ACPI Compliant CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : SOYO Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: |
|
